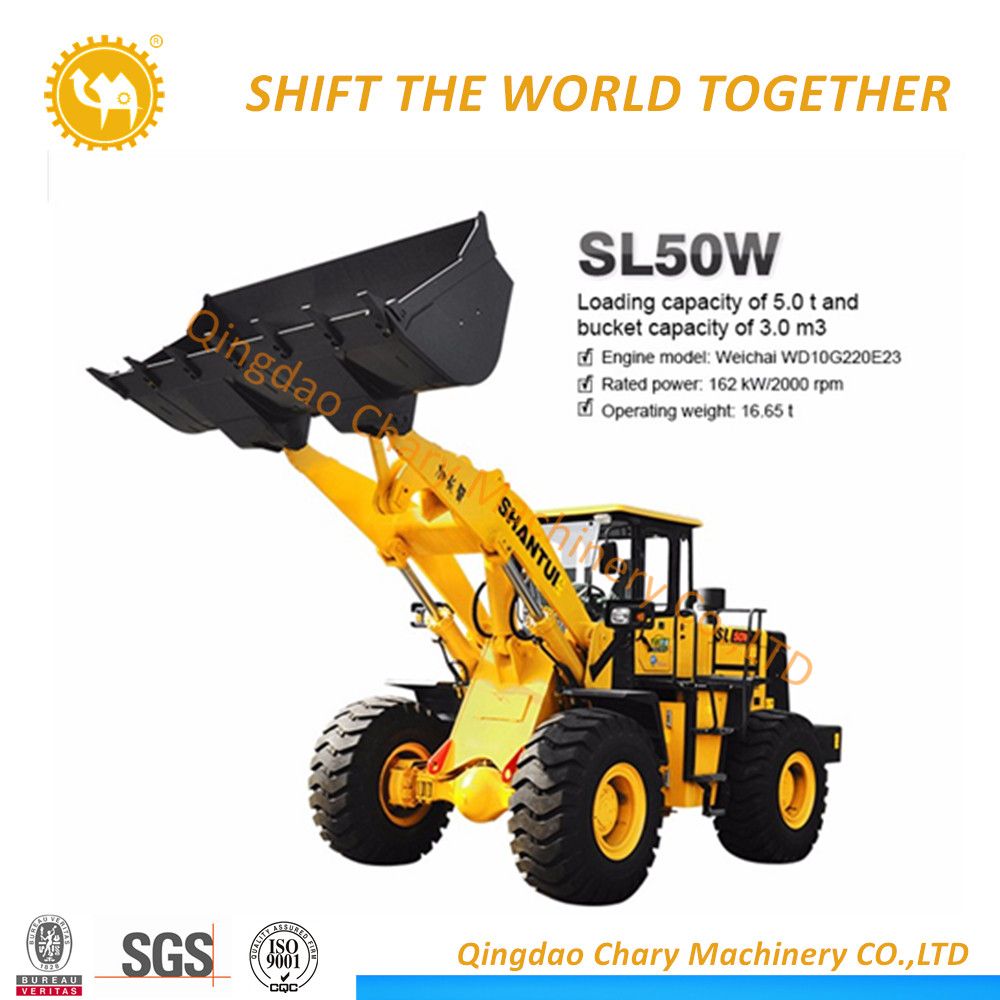

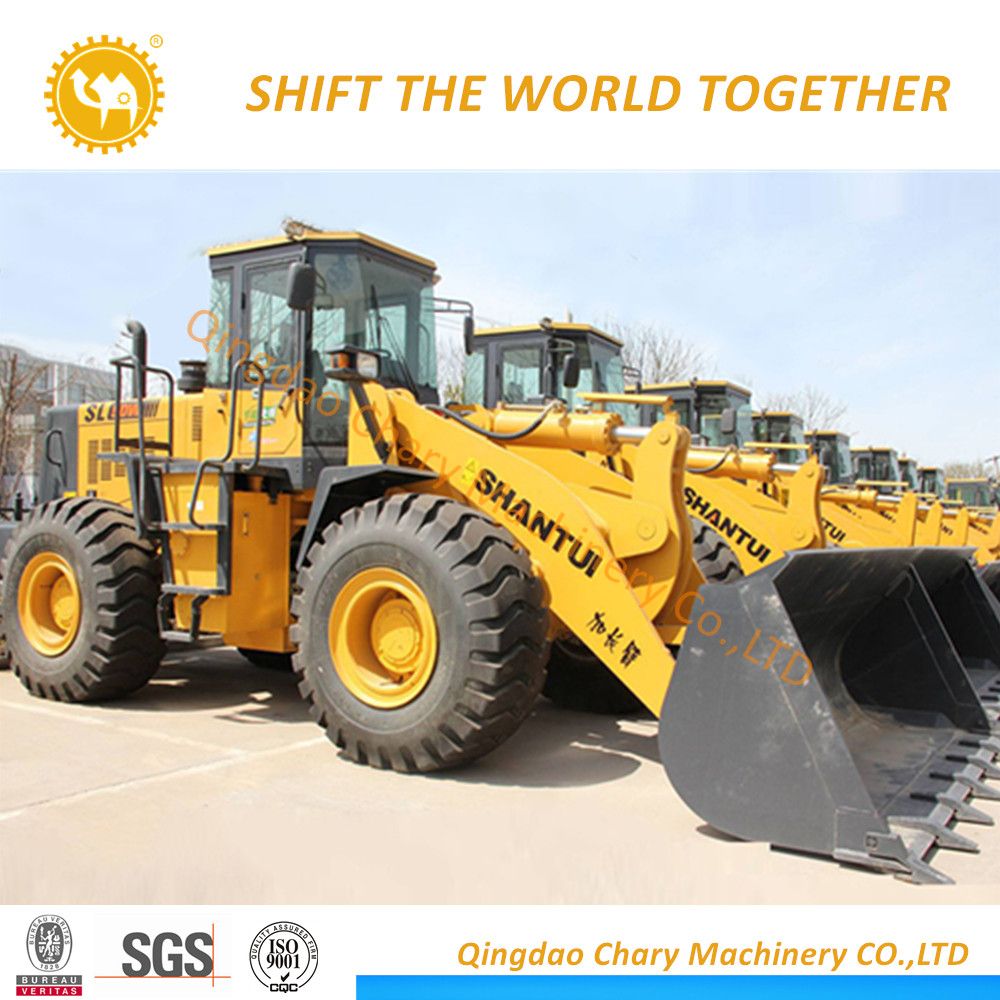

5ton Rated China Shantui Front End Loader SL50W

5ton Rated China Shantui Front End Loader SL50W

2021-02-03

STRUCTURE
High strength design, CAE analysis to eliminate local weakness, through high strength destructive operation test, to ensure that to meet all kinds of bad conditions. The key components are robot welding, deep welding, stable weld quality, and guarantee the stability of the core bearing parts.

Power Transmission System
Shantui special power and Shantui self customized gearbox, torque converter, drive axle, reasonable matching, quick response;

Hydraulic Pressure System
Dual pump combined priority valve hydraulic system, coaxial flow amplification steering system, hydraulic response fast, vehicle steering work, high efficiency;

Maintenance Convenience
Open the folding double spring side shield, open design, large opening angle, convenient opening, convenient maintenance;

The utility model has the advantages of convenient opening and high maintenance convenience;

The design of the lubrication lead point of the whole vehicle, the brake system has a key water supply, and the daily maintenance is convenient.



ITEM

SL50W/SL50W-2

Engine

Weichai WD10G220E23

Rated power (kW/RPM)

162/2200

Displacement (L)

9.726

Minimum diesel consumption (g/kW•h)

215

Ma×imum torque  (NM)

900

Operating weight  (kg)

17000

Dimension L×W×H (mm)

8054*3072*3410

Center distance of tires (mm)

2250

Wheel base (mm)

3250

Loading capacity (t)

5

Bucket capacity (m3)

3

Ma×imum traction force (KN)

162

Ma×imum breakout force (KN)

185

Static tipping load (full turn) (kg)

10000

Gradeability (°)

30

Minimum turning radius (mm)

Outside of bucket

6590

Outside of tire

7256

Turning angle (°)

36

Dumping height (mm)

Standard Arm

3178

EXtended

3350

Long

3676

Dumping reach (mm)

Standard Arm

1160

E×tended

1110

Long

954

Lifting/Lifting,dumping and lowering time (S)

54/109

Travel speed (km/h)

Forward 1

0-13 or 0-8

Forward 2

0-38 or 0-15

Forward 3

(n/a)or 0-24

Forward 4

(n/a) or 0-38

Reverse 1

0-17 or 0-8

Reverse 2

(n/a) or 0-24
