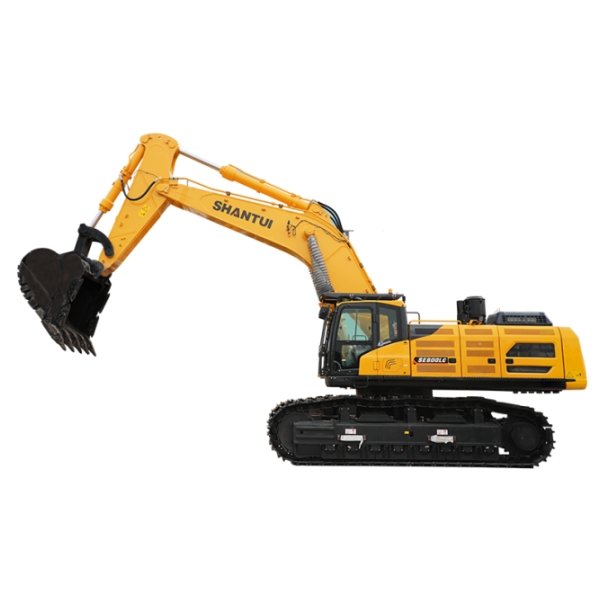

SHANTUI Mining Excavator SE800LCW
SHANTUI Mining Excavator SE800LCW
Operating weight(kg)：76500
Engine power(kW/rpm)：566/1900
Bucket capacity(m³)：5
The golden combination of Weichai and Linde, supplemented by the fully electronic control positive-flow hydraulic system, ensures a perfect synergy between load and flow, resulting in significantly improved response speed.
Construction Machinery
SHANTUI Mining Excavator SE800LCWSHANTUI Mining Excavator SE800LCW
Operating weight(kg)：76500
Engine power(kW/rpm)：566/1900
Bucket capacity(m³)：5
The golden combination of Weichai and Linde, supplemented by the fully electronic control positive-flow hydraulic system, ensures a perfect synergy between load and flow, resulting in significantly improved response speed.The golden combination of Weichai and Linde, supplemented by the fully electronic control positive-flow hydraulic system, ensures a perfect synergy between load and flow, resulting in significantly improved response speed.
The machine is equipped with a 10.1-inch capacitive touchscreen, featuring a full-fitting IPS screen with wide viewing angles and high brightness, ensuring excellent visibility even under sunlight. The machine also provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
It can be configured with a range of working devices such as rock buckets, breaker hammers, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements
| Parameter | SE800LCW |
|---|---|
| Operating weight(kg) | 76500 |
| Engine power(kW/rpm) | 566/1900 |
| Bucket capacity(m³) | 5 |
| External dimensions(mm) | 12600*4310*4700 |
| Bucket rod digging force(kN) | 350 |
| Bucket digging force(kN) | 420 |
| Rotating speed(r/min) | 0-7.2 |
| Travel speed(km/h) | 3.2/4.7 |
| Maximum digging height(mm) | 11820 |
| Maximum digging distance(mm) | 11700 |
| Maximum digging depth(mm) | 7150 |
| Emissions (Indicated as per international standards) | Eu stage IIIA |
If you have any questions about the product, please fill in the form below and we will contact you as soon as possible.
