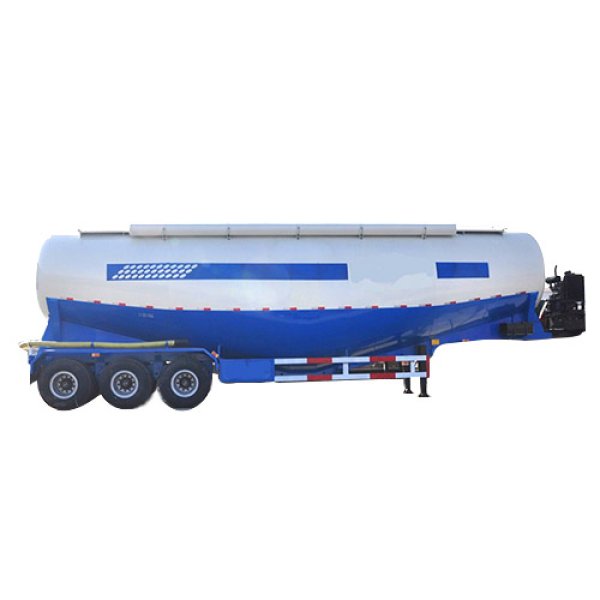

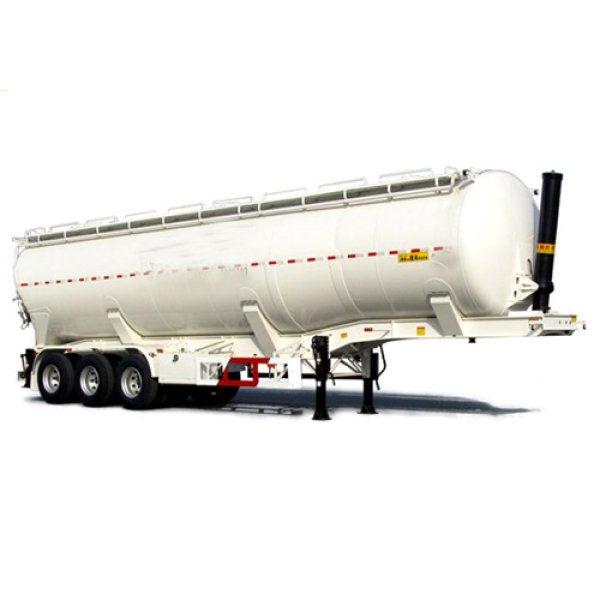

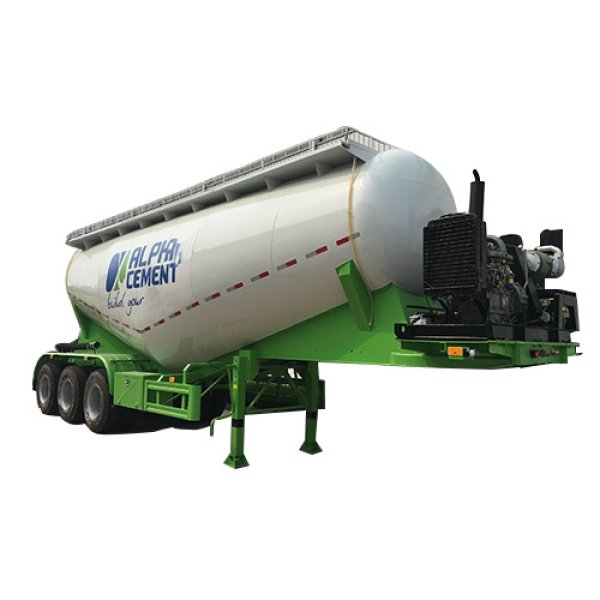

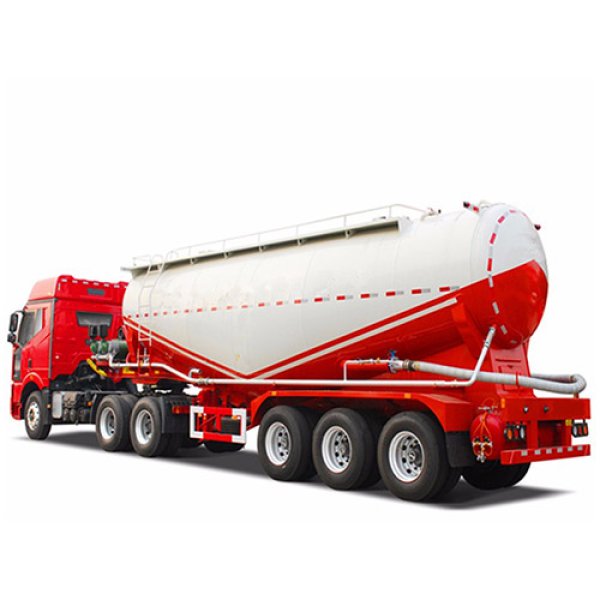

3 Axles 45cbm Cement Bulker Trailer 4 Axles Wheat Flour Tanker Semi Trailer Aluminum Tanker 3000L 40000L Bulk Cement Tank Trailer

Type

3-Axle 45cbm Bulk Cement Tank Semi Trailer

Model

LTH9401GFL

Function

Bulk cement, fly ash, flour and other powder material

Overall Dimension

Approx. 10750mm (L) × 2500mm (W) × 3870mm (H)

Effective Volume

Approx. 45m³

Tare Weight

Approx. 8700KG

Tank Body

Tank Material

Q345 high-strength steel

Tank Dimensions

9700mm (L) × 2500mm (W)

Tank Cartridge Number

Single compartment, tank profile: V-shaped cross section

Tank Body Thickness

3mm

End Plate Thickness

4mm

Diesel Engine

KAFA Brand, model #4102, made in Chna

Air Compressor

BOHAI Brand, capacity:12m³, made in China

Manhole Cover

Anti-explosion type, 2pcs

Discharge Tube

6m (L) × 1pcs

Chassis

Main Beam

Material Q345, submerged arc welded I-beam designed for the tank body

Traction Pin

Size: 90#(3.5"), assembled type, made in China

Land Gear

JOST C200 two-operation-handle type, static capacity 28T

Axle

FUWA Brand 3×13ton, track 1840mm, made in China

Suspension Type

Mechanical tandem suspension for 90mm width spring

Leaf Spring

10-leaf spring, 90mm width, 13mm thickness

Tire

Triangle Brand, model 12R22.5, 13sets (include one spare tire)

Rim

Model 9.0*22.5, 13sets (include one spare rim)

Accessories

Brake System

Dual line pneumatic brake system, 4 dual-room and 2 single-room air-brake chambers

ABS

Model 4S/2M, WABCO Brand emergency relay valve

Tool Box

Length 1.0m × 1unit

Spare Tire Carrier

Hang type × 1unit

Fire Extinguisher

2units

Air/Elec. Connector

ISO Standard air connector, 12V 7 pin plug socket, LED lighting system with modular wiring harness

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Others

One "LONG VEHICLE" sign on rear end, conspicuity tape

Transport Treatment

Painting

Shot blast at Std. SA 2.5 prior to application of zinc-rich primer and polyurethane top coat. Total DFT not less than 100um

Anticorrosion

Wax spray treatment to prevent corrosion during the ocean transportation
