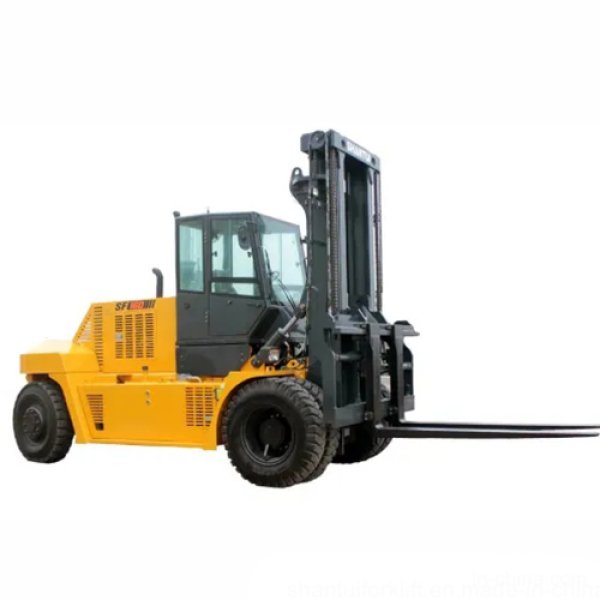

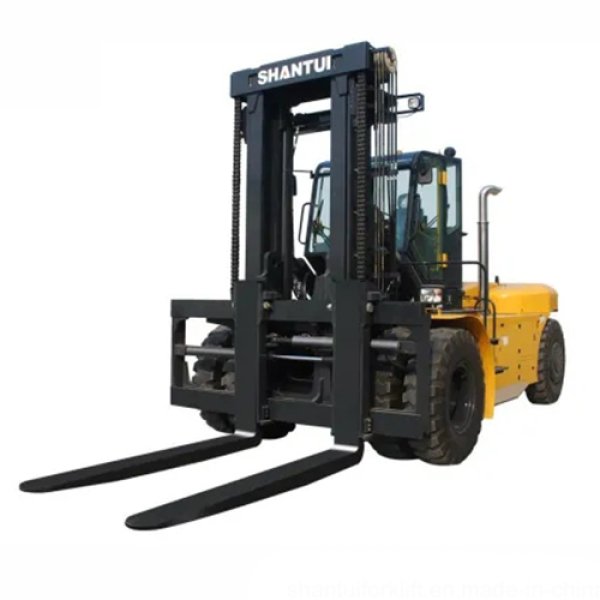

Cheap 13.5 Ton Disel Forklift

Products

Cheap 13.5 Ton Disel Forklift

China Forklifts Cpcd120 13.5 Ton Diesel Engine Mounted Forklift


MODELCPCD120SF135
1PERFORMANCEMODEL

DIESEL
2RATED CAPACITYkg1200013500
3LOAD CENTERmm600600
4LIFT HEIGHTmm30003000
5FREE LIFT HEIGHTmm8585
6FORK SIZElength/width/heightmm1820×200×851820×200×85
7MAST TILTfront/rear.8/108/10
8MINTURING RADIUSmm47504750
9MIN RIGHT ANGLE STACK AISLE WIDTHmm84858485
10MIN RIGHT ANGLE AISLE WIDTHmm44864486
11MIN GROUND CLEARANCEmm215215
12GUARD HEIGHTmm30603060
13FORK OVERHANGmm784784
14MAX trAVEL SPEEDFULL LOADkm/h2525
15MAX LIFT SPEEDFULL LOADmm/s370370
16MAX trACTFULL LOADKW8080
17MAX GRADEBILITY%2020
18SIZETOTAL LENGTHWITHOUT FORKmm48004800
19TOTAL WIDTHmm26002600
20FORK MAX LIFT HEIGHT WITH BRACKETmm46964696
21MAST HEIGHTmm32103210
22CHASISTIREFRONT TIRE
11.00-20-18PR11.00-20-18PR
23REAR TIRE
11.00-20-18PR11.00-20-18PR
24WHEEL DISTANCEmm30003000
25trEADFRONT/REARmm1950/20501950/2050
26SELFT WEIGHTNO LOADKg1870019500
27DRIVEBATTERYVOLTAGE/CAPACITYV/Ah24/15024/150
28ENGINEMODE
CUMMINS QSB4.5CUMMINS QSB4.5
29RATED POWERkw/r.p.m104KW@2000104KW@2000
30RATED TOQUENm/r.p.m620NM@1500620NM@1500

LEGISLATION
EURO IIIAEURO IIIA
34FUEL TNAKL130130
35trANSMISSION GEAR
2/22/2ELECtrIC
36
Mpa2020
37SUPPLIMENTTYRE (FRONT/REAR)

AIR TYRE
38TYRE NO(FRONT/REAR)
4/24/2
39FULL LOAD DOWN SPEEDmm/s410410
40NO LOAD DOWN SPEEDmm/s320320
41FULL LOADE(FRONT/REAR)AXLE WEIGHT DISPATCHkg27650/305029500/3500
42NO LOAD(FRONT/REAR)AXLE WEIGHT DISPATCHkg7500/112008000/11500
