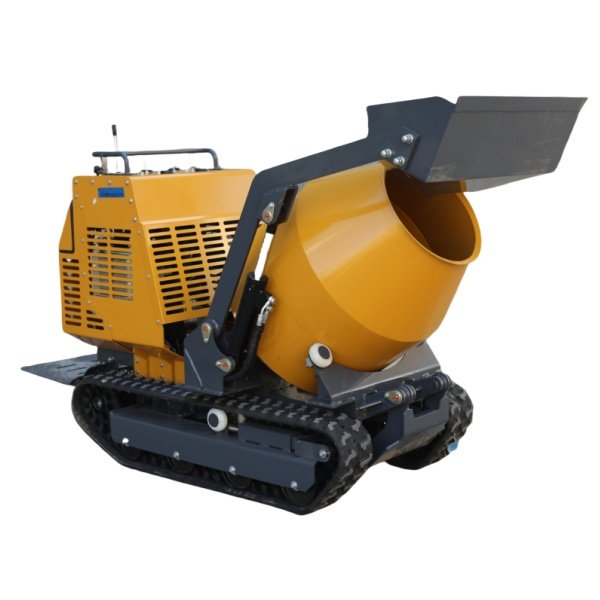

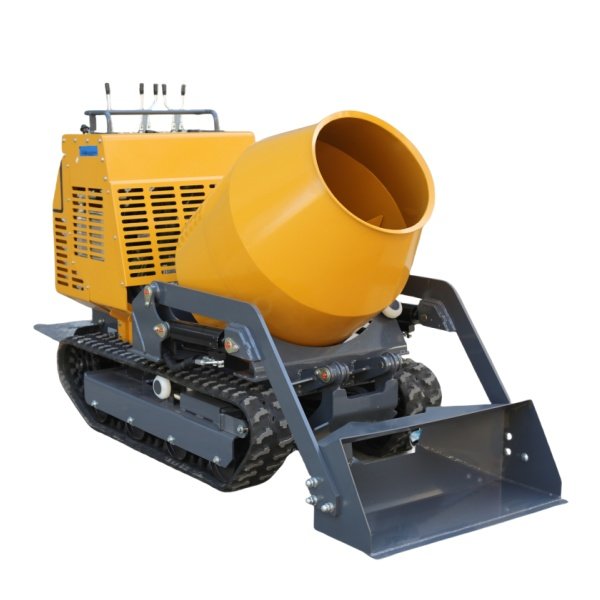

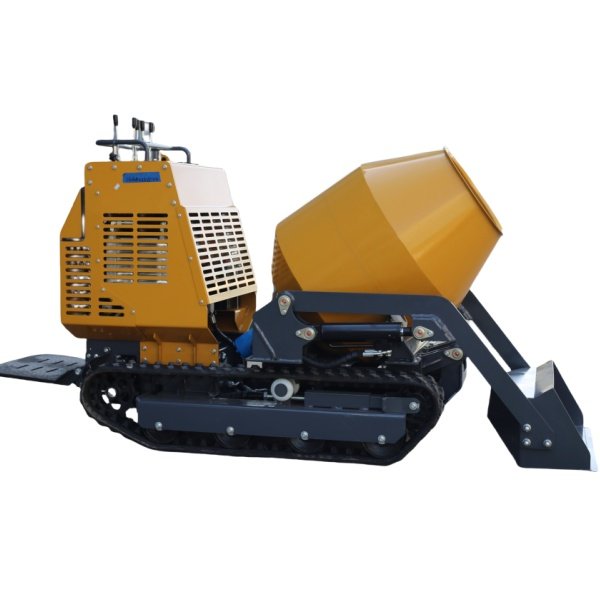

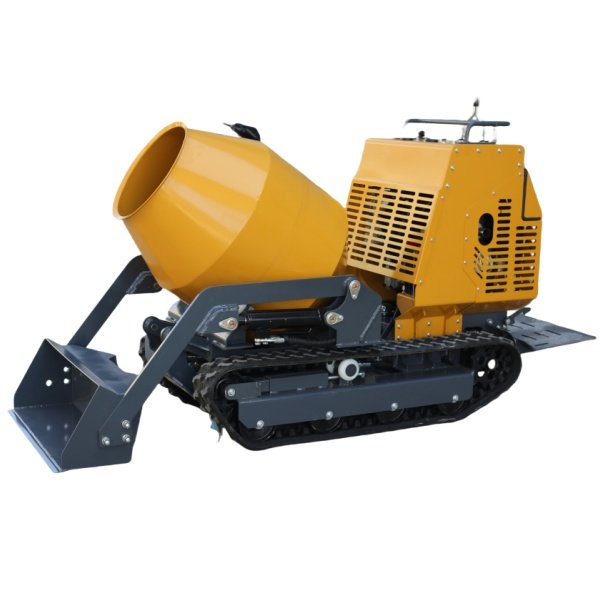

Cheap Price Mini Dump Truck Concrete Mixer

Engine Type：

Single cylinder, OHV, 4-stroke, air cooling

Displacement：

420CC

Rated Power：

13.5HP/3600rpm

Fuel Type：

92 # Gasoline

Fuel Tank capacity：

6.5

Total Weight：

750

Machin size：（Without pedal, without bucket）

1800*900*1500

Bucket size with foot pedal:

2500*900*1500

Chassis width：

850

Diameter of irrigation port:

460mm

Mixing tank length:

880mm

Mixing tank diameter:

720mm

Tank capacity:

300

Dumping method:

Hydraulic Tipper

Mixing tank dumping angle:

100

track width：

180

Track grounding length：

1000

Chassis ground clearance:

110

Bucket length:

820mm

Leakage port length:

300mm

Leakage port width:

150mm
