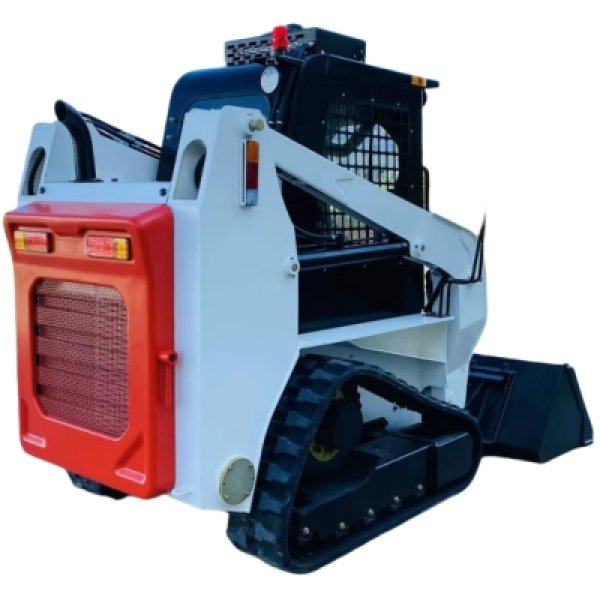

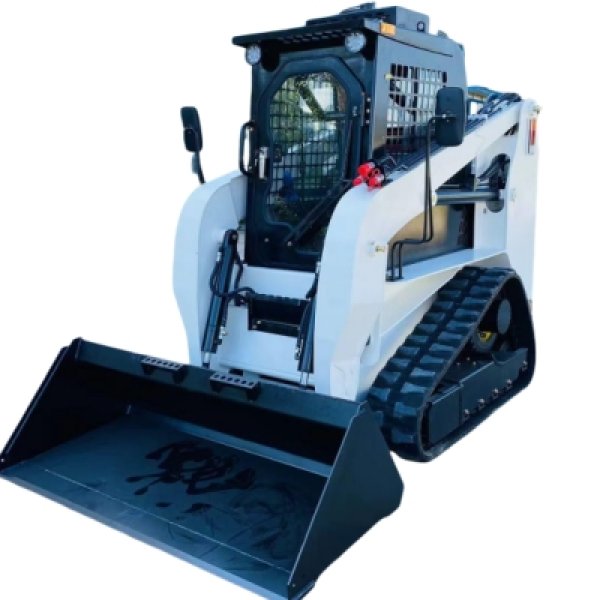

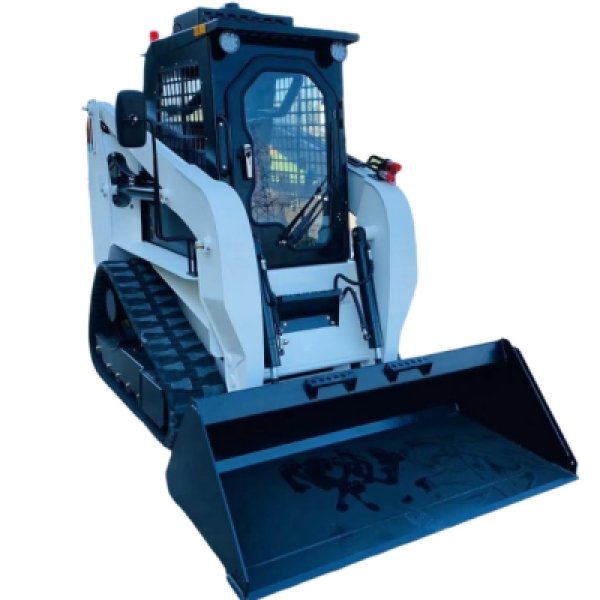

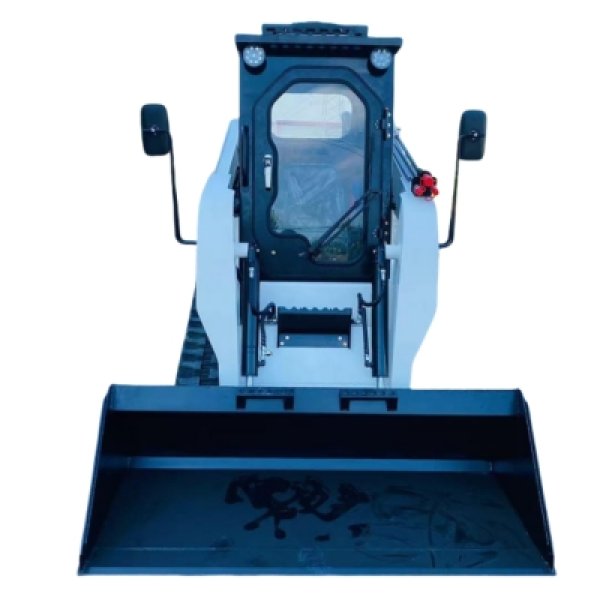

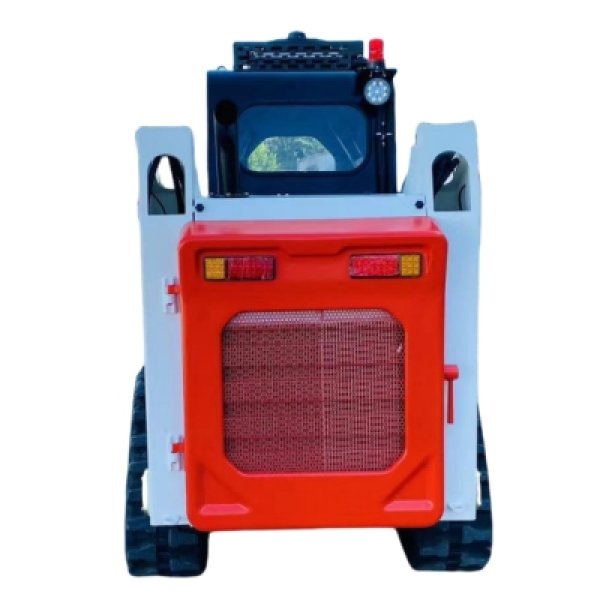

Diesel Crawler Mini Small Skid Steer Loader

Free shipping China manufacturer EPA Diesel Crawler Mini Small Skid Steer Loader for Home Garden

Linda

Model	AT50
Operating load (kg)	700
Max Speed（km/h）	10
Rated flux (L/min)	80
Tire（track） model	300X52.5
Rated power (Kw)	45KW
Fuel tank capacity (L)	50
dead weight (kg)	2700
self weight bucket (kg)	2800
Bucket capacity (m³)	0.4
Overall operating height (mm)	3660
Height to bucket hinge pin (mm)	2730
Hheight to top of cab (mm)	2349
Height to bottom of level bucket(mm)	2500
Without bucket length（mm）	2170
Overall length with bucket(mm)	3150
Dumping angle at maximum height(° )	40
Dumping height(mm)	1990
Dumping reach(mm)	1040
Rollback o bucket on ground(° )	30
Rollback of bucket at full height(° )	100
Wheelbase(mm)	1230
Ground clearance(mm)	230
Angle of departure(° )	18.5
Front turning radius without bucket(mm)	1064
Front tuning radius(mm)	1825
Rear tuning radius(mm)	1264
Rear axle to bumper (mm)	590
Tread width (mm)	1022
Width (mm)	1422
Bucket width (mm)	1700
