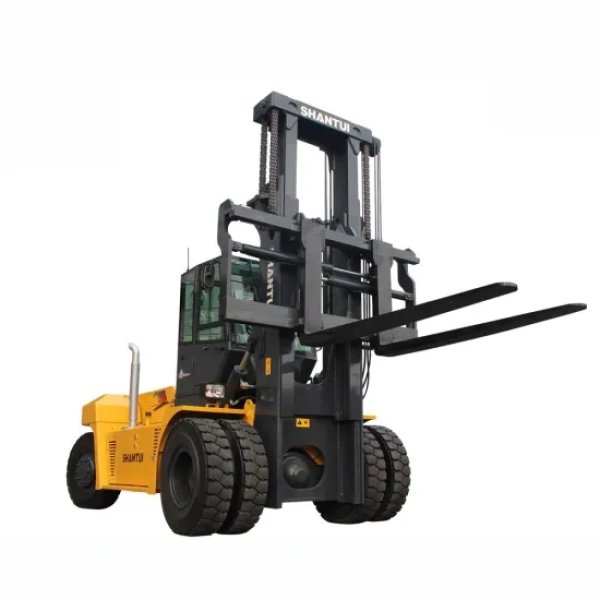

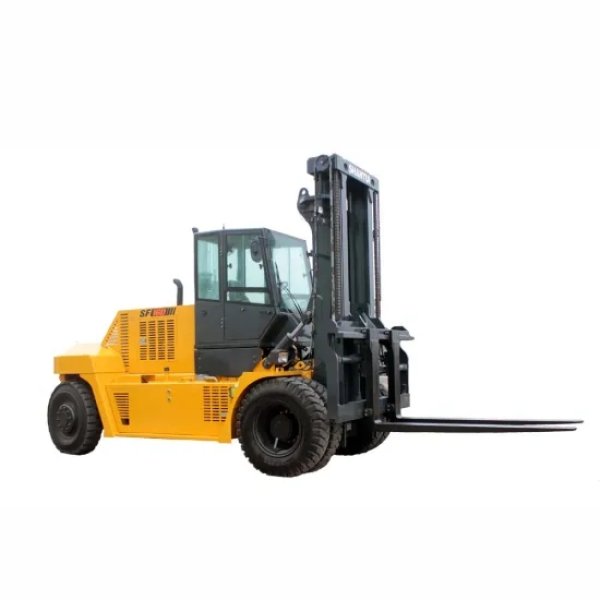

12 Ton Diesel Forklift

China Brand New 12 Ton Diesel Forklift Truck for High Quality Materials Handing Equipment Sale

Linda

MODEL					SF120
1	PERFORMANCE	MODEL			diesel
2		RATED CAPACITY		kg	12000
3		LOAD CENTER		mm	600
4		LIFT HEIGHT		mm	3000
5		FREE LIFT HEIGHT		mm	85
6		FORK SIZE	length/width/height	mm	1820×200×85
7		MAST TILT	front/rear	.	8/10
8		MINTURING RADIUS		mm	4750
9		MIN RIGHT ANGLE STACK AISLE WIDTH		mm	8485
10		MIN RIGHT ANGLE AISLE WIDTH		mm	4486
11		MIN GROUND CLEARANCE		mm	215
12		GUARD HEIGHT		mm	3060
13		FORK OVERHANG		mm	784
14		MAX trAVEL SPEED	FULL LOAD	km/h	25
15		MAX LIFT SPEED	FULL LOAD	mm/s	370
16		MAX trACT	FULL LOAD	KW	80
17		MAX GRADEBILITY		%	20
18	SIZE	TOTAL LENGTH	WITHOUT FORK	mm	4800
19		TOTAL WIDTH		mm	2600
20		FORK MAX LIFT HEIGHT WITH BRACKET		mm	4696
21		MAST HEIGHT		mm	3210
22	CHASIS	TIRE	FRONT TIRE		11.00-20-18PR
23		TIRE	REAR TIRE		11.00-20-18PR
24		WHEEL DISTANCE		mm	3000
25		trEAD	FRONT/REAR	mm	1950/2050
26		SELFT WEIGHT	NO LOAD	Kg	18700
27	DRIVE	BATTERY	VOLTAGE/CAPACITY	V/Ah	24/150
28		ENGINE	MODE		CUMMINS QSB4.5
29			RATED POWER	kw/r.p.m	104KW@2000
30			RATED TOQUE	Nm/r.p.m	620NM@1500
			LEGISLATION		EURO IIIA
34		FUEL TNAK		L	130
35		trANSMISSION GEAR			2/2
36				Mpa	20
37	SUPPLIMENT	TYRE (FRONT/REAR)
38		TYRE NO(FRONT/REAR)			4/2
39		FULL LOAD DOWN SPEED		mm/s	410
40		NO LOAD DOWN SPEED		mm/s	320
41		FULL LOADE(FRONT/REAR)AXLE WEIGHT DISPATCH		kg	27650/3050
42		NO LOAD(FRONT/REAR)AXLE WEIGHT DISPATCH		kg	7500/11200
