Diesel Machine Walking Mini Skid Steer Front Loader Mini Dumper

High Power Diesel Machine Walking Mini Skid Steer Front Loader Mini Dumper

Linda

● Branded gasoline engine (compliant with EPA and Euro 5 emission standards), powerful and easy to start.

● Hydraulic drive, strong crawler grip, excellent walking and climbing ability.

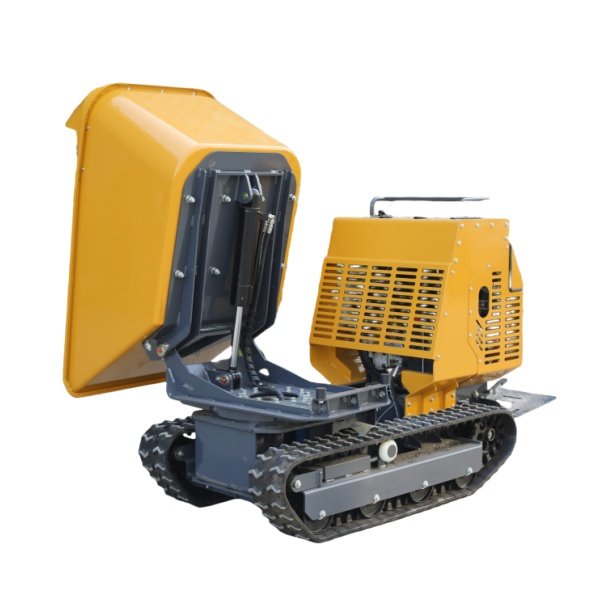

● The cargo box can rotate 180 degrees, making unloading more convenient

● The surface is sprayed with plastic, beautiful and elegant, rust-proof and corrosion-resistant.

Engine Model	Briggs&Stratton
Engine Type	Single cylinder, OHV, 4-stroke, air cooling
displacement	420CC

Rated Power	13.5HP/3600rpm
Fuel Type	92 # Gasoline
Fuel Tank capacity	6.5
Net weight:	850
Maximum load capacity	1200
Body size : (Footboard not included)	20609001400
Pedal machine size included	24709001400
Container size：	1400800600
Chassis width：	850
Maximum rotation Angle	180
Rotation mode:	Hydraulic rotation
Tipping interval	320mm
track width：	180
Track grounding length：	1000
Chassis ground clearance:	140
Cargo box Capacity	594
Tipping Systme	Hydraulic Tipper
Tilting Angle	90
Clearance after tipping container	400
Walking Speed	5
Climbing a billty	25
Emission	Horsepower/RPM
EURO2	11HP/3600
EURO5	11HP/3600
EPA/EURO5	15HP/3600
EPA	13HP/3600
