3 axles Tipping Semi Trailer

3 axles Tipping Semi Trailer,this semi-trailer can be lifted by itself and has the advantages of large capacity and easy lifting and unloading.

Inquiry List Add To Inquire Vehicle

3 axles Tipping Semi Trailer

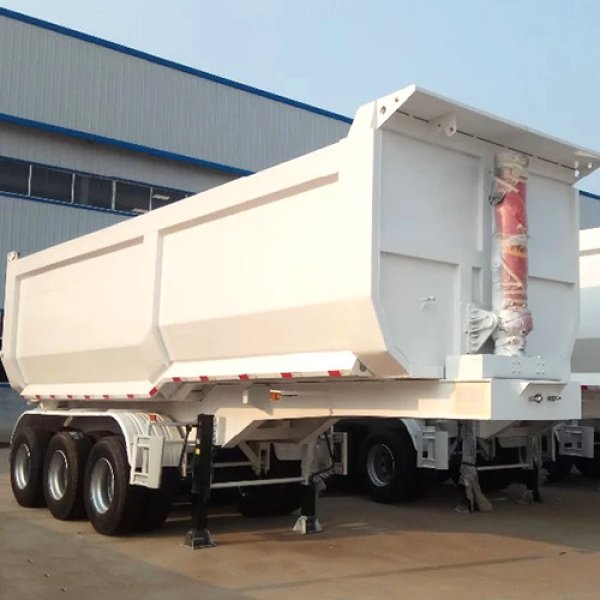

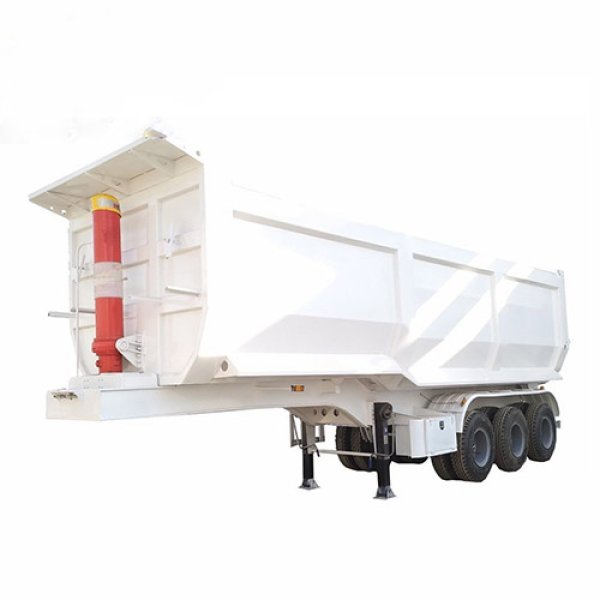

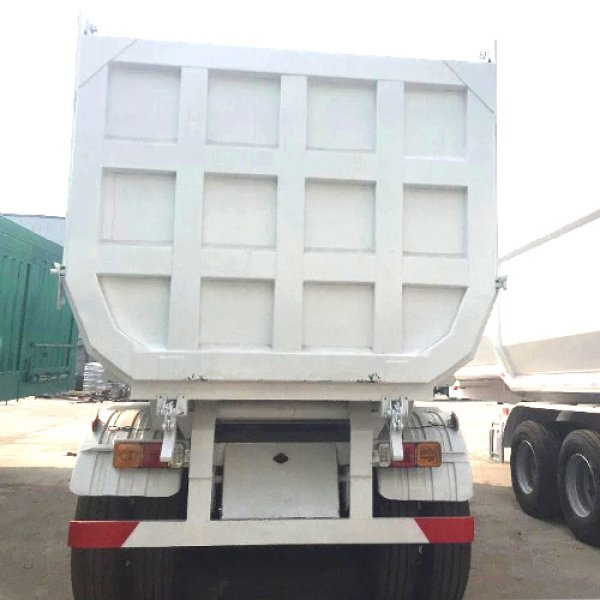

Hydraulic tipper trailer for sale near me adopts 214 hydro cylinders, Not only strong power but also good quality, and will never overturn the phenomenon. The semi tipper for sale rear box plate uses 4 turn over brackets, which makes the cargo more strong.

OEM Parts Configuration
King Pin:	2"bolted king pin. Brand: JOST. Made in China.
Landing Gear:	SAF-HLD 30T, 19"

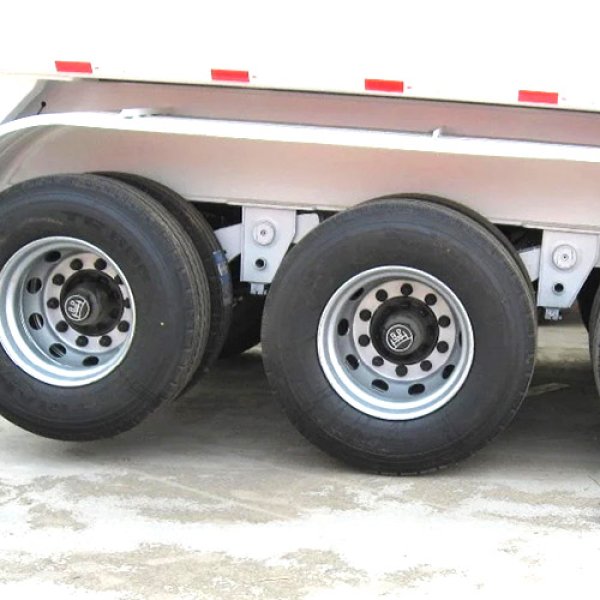

Suspension:	American type mechanical suspension with equalizers 7-leaf spring
Axles:	13 tons capacity × 3,
Rims:	8.0V-20, equip 13 per chassis
Tires:	double coin, type: 1100R20-18PR,RLB,equip 13 per chassis
Brake System:	Dual air brake system, WABCO relay valve, without ABS
Brake chamber:	Type 30/30 on the all axles.
Electrical System:	24volt lighting system, 7-way receptacle, ISO standard.
Hydraulic system:	Brand & Type: HYVA with all the hydraulic kits including the oil tanker, Valve, connecting pipe, but not provide the PTO. Customer needs modify the Truck tractor by themselves for whole vehicle operation.
