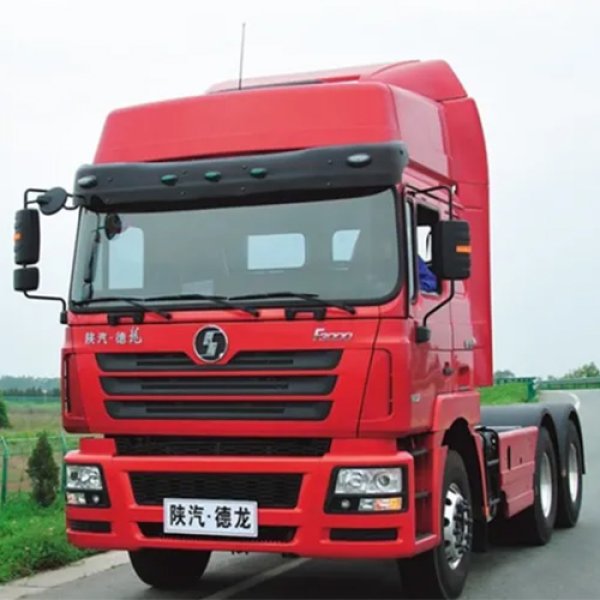

Shacman X3000 Tractor Truck 371HP 6X4 Original New Shacman F3000 Tractor Truck Diesel Fuel Euro 2 Tractor Truck

Cabin

Air suspension F3000 high roof with double sleeper, hydraulic shock absorb , safety belt,

adjustable steering, sunroof, sun cap, bumper

Engine

Diesel, 4-stoke Direct injection, 6-cylinder in line, radiator, Turbo-charging.

Model:

WD615.38

European technology WEICHAI brand (Euro 2) Cummins Engine can be optional

Engine power

380hp/279kw

Displacement(L):

11.596 Liter

Max torque:

1500NM@1300~1600

Bore/stoke:

126mm/155mm

Fuel consumption:

198g/kW.h

Gear box

Applied American fuller technology

Model:

FAST 12JS160T

Speed:

12 speed, 2 reverse

Axle(front/rear)- Military axle

Front axle

7.5T MAN technology non-driving steering axle

Tandem

13T Str technology double reduction, hub redactor driving axle

(Driving axle)

Wheel differential locks

Clutch

D430 diaphragm type, single dry frictional disc, hydraulic boosting.

Brake

Service brake: Double circuit pneumatic brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)

Steering

ZF technology, driver sit at the left hand side

Electric  Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah,cigar lighter

Frame

780mm (width)-Variable sections strengthened frame, made as tough road condition

Tyre

10+1 spare tyre with wheel

12.00-20 bias tyre

Suspension system: Leaf spring type

Front/Rear

10/12

Overall dimension(mm): 6645x2495x3710(Length x width x height)

Wheelbase

2925+1350mm

track:

Front/Rear

2036/1800

Approach/Departure angle

18/66

Front /Rear overhang

1525/845

Max speed

92km/h

Curb weight:

9100kg

Diesel tank

380L
