3 Axles Flatbed Semi Trailer

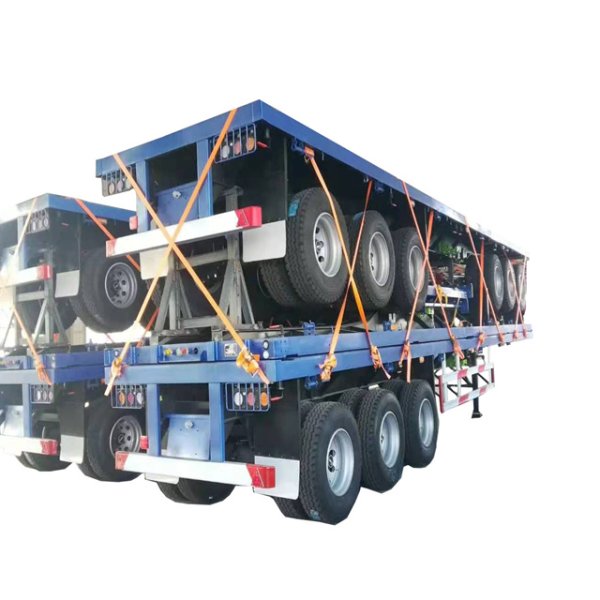

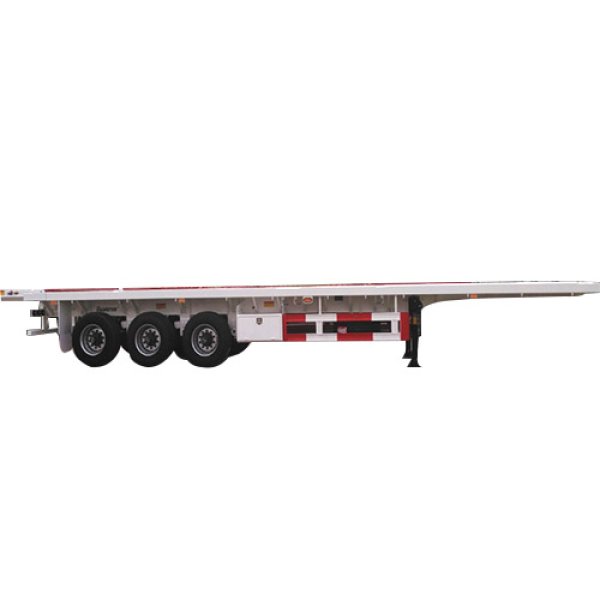

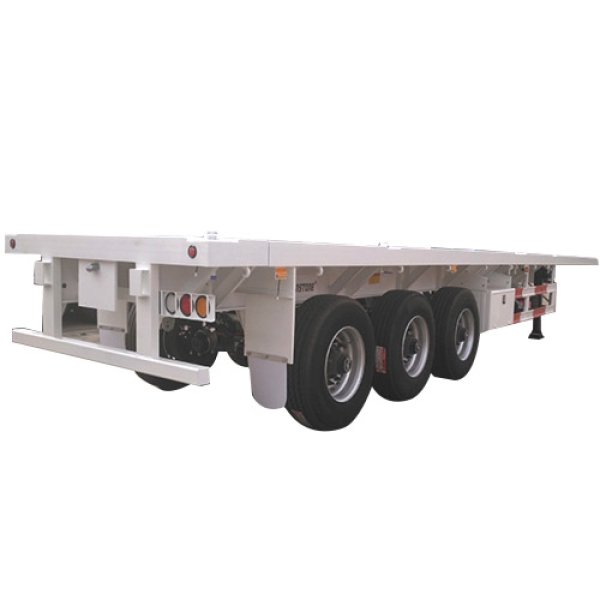

Chary Trailer - 3 Axles Flatbed Semi Trailer

Inquiry List Add To Inquire Vehicle

Main Specification
Type	3 Axles 40ft Container Transport Flatbed Semi Trailer
Function	Carries one 40ft or two 20ft or one 20ft ISO container
Loading Weight	40 tons
Overall Dimension	12500mm(L) ×2500mm(W) ×1560mm(H)
Color	Depend on customer's requirement
Chassis
Main Beam	Material Q345,500mm deep submerged arc welded I-beam consisting of 14mm upper plate, 16mm down plate and 8mm web
Boundary Beam	14# channel steel, material: Q235
Cross Beam	W-shaped steel, material: T700
Platform	2.0mm thickness checkered board
Twist Lock	12pcs
Traction Pin	Size: 3.5"(90#), welded type, made in China
Land Gear	Double-side operation type, static capacity 80T, made in China
Axle	FUWA Brand 3×13ton, track 1840mm, made in China
Suspension Type	Mechanical tandem suspension
Leaf Spring	10-leaf spring, 90mm width, 13mm thickness
Tire	Triangle Brand, model 12R22.5, 13sets (include one spare tire)， tires can be optional.
Rim	9.0*22.5, 13sets (include one spare rim)
Accessories
Brake	Dual line pneumatic brake system, 4 dual and 2 single air-brake chambers
ABS	SIVCO Brand, 4S/2M
Tool Box	1 unit
Spare Tire Carrier	2 units
Air/Elec. Connector	ISO Standard air connector, 12V 7 pin plug socket, LED lighting system with modular wiring harness
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Others	One “LONG VEHICLE” sign on rear end, conspicuity tape
Transport Treatment
Painting	Sandblasting treatment before painting, vehicle special-used paint, one time primer and two times topcoat
Anticorrosion	Wax spray treatment to prevent corrosion during the ocean transportation
