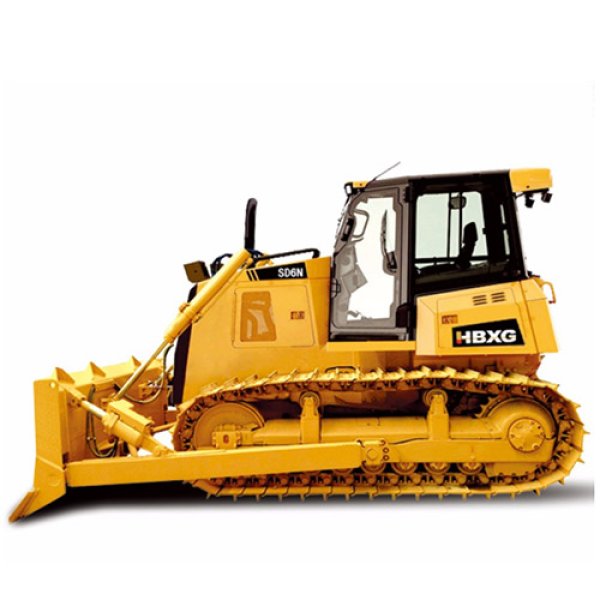

HBXG SD6N

Performance

Dozer

-

Tilt

Operation weight

kg

16500

Ground pressure

kPa

52.80

Track gauge

mm

1880

Min. ground clearance

mm

445

Gradient

°

30/25

Dozing capacity

m³

4.5

Blade width

mm

3320

Max. digging depth

mm

592

Overall dimensions

mm

5098x3320x3108

Engine

Brand

-

Shangchai

Model

-

SC11CB184G2B1

Rated power

kW/rpm

131/1850

Max. torque

N.m/rpm

812/1300

Rated fuel consumption

g/kW.h

<215

Undercarriage system

Type

Swing type of sprayed beam. Suspended structure of equalizer bar.

No. of track rollers

each side

7

No. of carrier

each side

2

Pitch

mm

203

Width of shoe

mm

560

Forward gear

km/h 1st/2nd/3rd

4/6.9/10.8

Backward gear

km/h 1st/2nd/3rd

4.8/8.4/12.9

Hydraulic system

Max. system pressure

MPa

15.5

Pump type

-

Gear pump

System output

(L/min)

167

Driving system

Torque converter

Hydraulic mechanical torque convertor with external power split.

Transmission

Planetary, power shift transmission. Quickly shifted.

Steering clutch

Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated.

Steering brake

Oil two direction floating band brake operated by mechanical foot pedal.

Final drive

Double reduction with spur gear and segment sproket.
