Hongyan 6X4 Flat Roof 430 HP Tractor Truck. 6X4 380HP Euro3 Hongyan Genlyon Dumper Truck with Flat Roof

Products
Hongyan 6X4 Flat Roof
Hongyan 6X4 Flat Roof
Hongyan 6X4 Flat Roof
Hongyan 6X4 Flat Roof
Hongyan 6X4 Flat Roof
Hongyan 6X4 Flat Roof

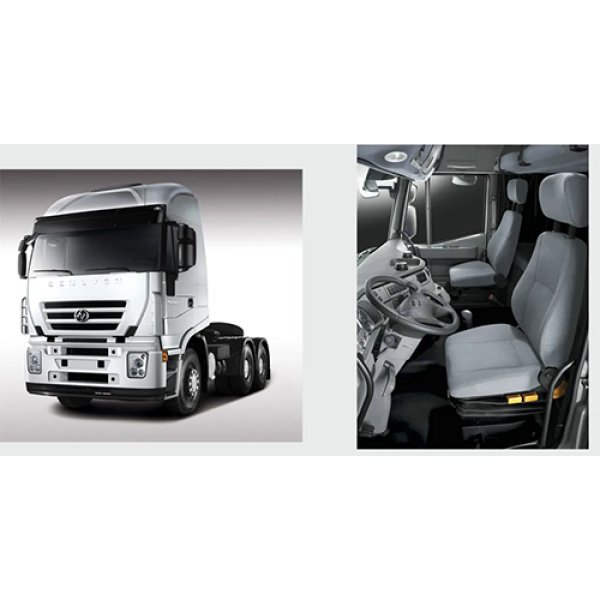

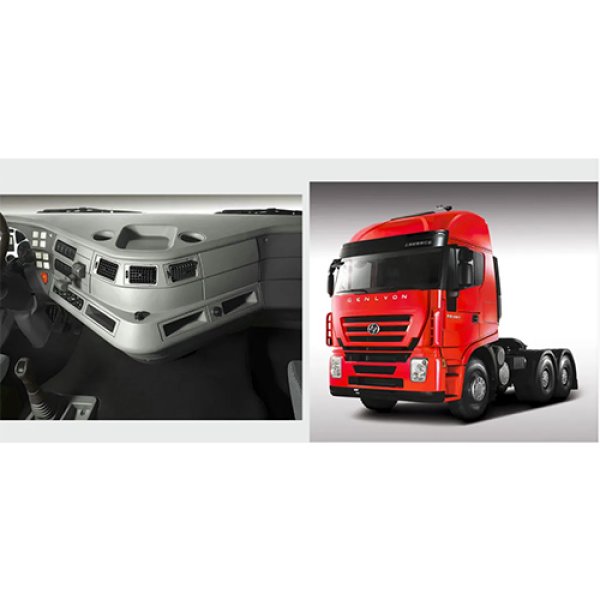

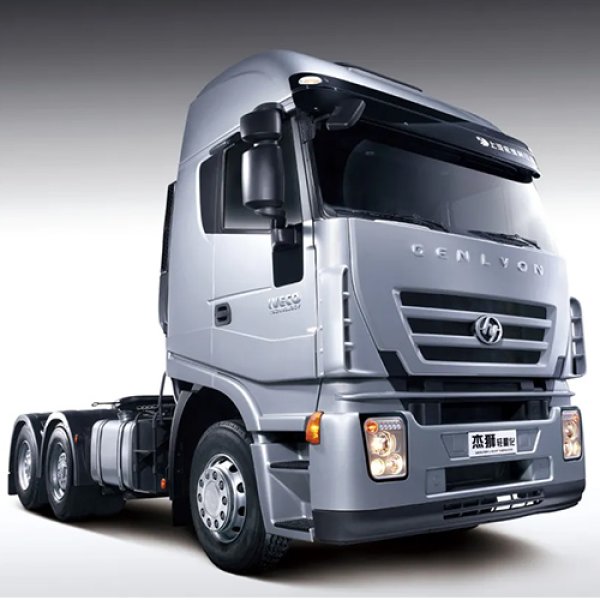

Hongyan 6X4 Flat Roof 430 HP Tractor Truck

Advantages

1.Italy Iveco advanced design and manufacture techniques .

2.Cursor 9 Engine: Light weight, low consumption, low maintain cost,  low noises, economical.

3.Advanced Cabin Anti-Corrosion & Welding Technic Free for Ten Years.

4.The punching, cutting, and bending procedures of the beam are all done by the world's most advanced machines.

5.Currently the fist four-axle testing line in China and can conduct power, ABS braking, sideslip, noise, tail gas, top speed and road test.

6.All Italian equipments for the truck testing line. Quality control far surpass that of Chinese standard. Testing items close to that of first grade European truck manufacturers.

7.The first Truck Brand in China which come through the European ECER29 Test.

8.Excellent quality, competitive price, with mature spare parts system.

TECHNICAL SPECIFICATION

NO.

SPECIFICATION

PARAMETER

NOTE

1

Model

CQ4254HTVG324V(C)


2

Cab

Genlyon C100 Cab Left Hand Drive, Flat-Roof,  with AC

Yellow/Red/White

3

Drive

6x4


4

5th Wheel Rated Payload(kg)

11400


5

Kerb Weight(kg)

6470


6

Gross Vehicle Weight(kg)

18000


7

Hualage Weight(kg)

35400


8

Overall Dimension(mm)

5913×2500×3797(L*W*H)


9

5th Wheel Diameter(mm)

90


10

Max Speed(km/h)

120


11

Wheelbase(mm)

3500


12

Engine

C13 430

Euro 3

13

Engine Output(HP)

430


14

Max. torque/speed (N.m/(r/min))

1550/1100-1800


15

Gearbox

12JSD220TA

Fuller technology

16

Steering gear

Z06 Hydraulic Steering Gear


17

Drive Axle

 Double reduction with differential, Punching-welding steel driving axle


18

Tyre

12R22.5


19

Oil Tank

400L    Aluminum-Magnesium Alloy
