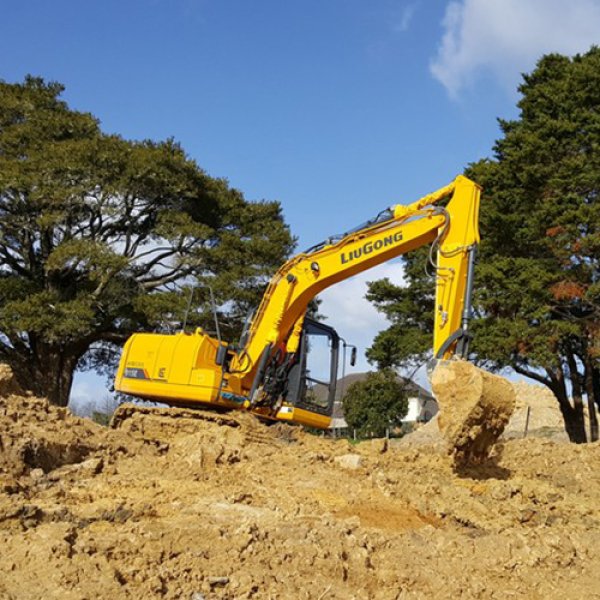

Liu Gong CLG915EIIIAQSF3.8

Products
CLG915EIIIAQSF3.8
CLG915EIIIAQSF3.8

CLG915EIIIAQSF3.8

Operating Weight

13,800 kg

Bucket Capacity

0.6 m³

Engine

Cummins QSF3.8

Gross Power

86 kW (117 hp) @ 2,200 rpm

Net Power

80.2 kW (109 hp) @ 2,200 rpm

Peak Torque

470 N•m @ 1,500 rpm

Travel Speed

High: 5.4 km/h
Low: 3.2 km/h

Drawbar Pull

122 kN

Swing Speed

12.9 rpm

Arm Breakout Force, max, ISO

70 kN

Bucket Breakout Force, max, ISO

96.1 kN

Maximum Dig Depth

5,470 mm

Reach at Ground Level

8,170 mm

Depth of 8’ Level Bottom

5,250 mm

Maximum Dig Height

8,760 mm

Dump Height

6,310 mm

Maximum Dig Depth of Vertical Wall

4,770 mm

Overall Lenth

7,750 mm

Overall Width

2,590 mm

Overall Height

2,900 mm
