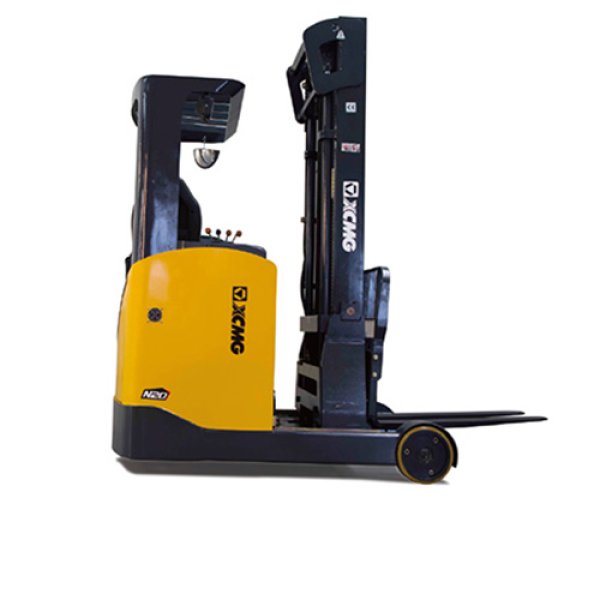

| Manufacturer | XCMG | ||||||
| Model | FBRS16-AC | FBRS18-AC | FBRS20-AC | ||||
| Power | Battery | ||||||
| Operation | Sit-on | ||||||
| Rated Load Capacity | Q (kg) | 1600 | 1800 | 2000 | |||
| Load Centre | C (mm) | 600 | |||||
| Lift Height | H3 (mm) | 5000 | |||||
| Free Lift | H2(mm) | 1345 | |||||
| Fork Size (L×W×T) | mm | 1070×120×35 | 1070×120×40 | ||||
| F/B(α°/β°) | Deg | 2°/4° | |||||
| Overall Length | L1 (mm) | 1876 | 1926 | ||||
| Main Body Length | L2 (mm) | 1243 | 1295 | ||||
| Width | B1 (mm) | 1270 | |||||
| Mast Lowered Height | H1 (mm) | 2316 | |||||
| Mast Extended Height (With Backrest) | H4 (mm) | 5965 | |||||
| Overhead Guard Height | H5 (mm) | 2195 | |||||
| Turning Radius | Wa (mm) | 1700 | 1750 | ||||
| Ground Clearance | H6 (mm) | 76 | |||||
| Reach Distance | X (mm) | 660 | 660 | ||||
| Wheelbase | Y (mm) | 1450 | 1500 | ||||
| Front tread | B2 (mm) | 1160 | |||||
| Working Aisle Width With Pallet (1000×1200,1200 Lengthways) | Ast (mm) | 2710 | 2760 | ||||
| Working Aisle Width With Pallet (800×1200,800 Lengthways) | Ast (mm) | 2745 | 2795 | ||||
| travel Speed (Full Load) | km/h | 9.5 | |||||
| travel Speed (No Load) | km/h | 10 | |||||
| Lifting Speed (Full Load) | mm/s | 300 | 290 | 280 | |||
| Max gradeability (Full Load) | % | 12 | 10 | ||||
| Total Weight (Contains the battery) | kg | 3000 | 3190 | 3240 | |||
| Front×2 | φ310x100 | ||||||
| Rear×1 | φ313x125 | φ343x140 | |||||
| Diver Motor | kw | 6.4 | |||||
| Pump Motor | kw | 12.5 | |||||
| Battery (Standard) | V/Ah | 48/420 | 48/560 | ||||
| Steering System | Electronic Power Steering | ||||||
| Service Brake | Electromagnetic Brake | ||||||
| Controller Type | AC | ||||||
| Controller Manufacturer | Curtis | ||||||
