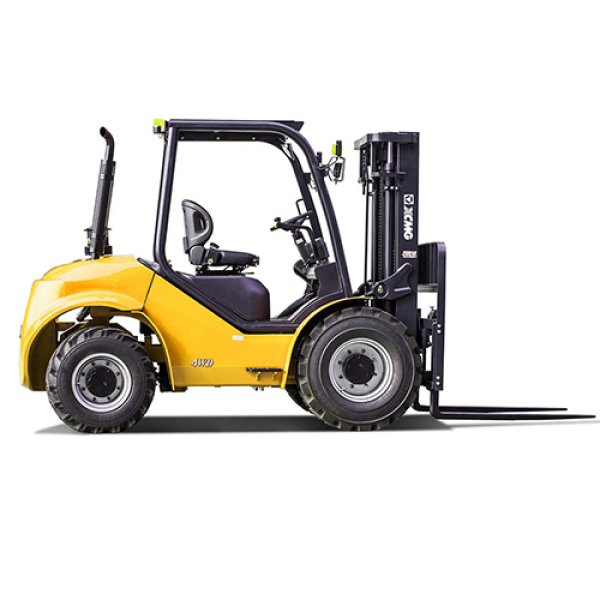

4WD Rough Terrain Diesel Forklift 2.5t
2.5t Rough Terrain Forklift 4wd
4WD Rough Terrain Diesel Forklift 2.5t
Forklift
2.5t Rough Terrain Forklift 4wd4WD Rough Terrain Diesel Forklift 2.5t
Model | FD25T-C4WE3 | ||
Power type | Diesel | ||
Rated capacity | Kg | 2500 | |
Load centre | mm | 500 | |
Lifting height | mm | 3000 | |
Free lift | mm | 160 | |
Fork size | L×W×T | mm | 1070×122×40 |
Fork regulating range | Min./Max. | mm | 250-1315 |
Mast tilt angle | F/R | Deg | 10/12 |
Front overhang | mm | 586 | |
Rear overhang | mm | 600 | |
Min.ground clearance(drive steering axle) | mm | 219 | |
Overall dimensions | Length to face of fork(without fork) | mm | 3066 |
Overall width | mm | 1450 | |
Mast lowered height | mm | 2265 | |
Mast extended height(with backrest) | mm | 4175 | |
Overhead guard height | mm | 2257 | |
Turning radius | mm | 3120 | |
Speed | travel(Laden/Unladen) | Km/h | 19/20 |
Lifting(Laden) | mm | 600 | |
Lowering(Laden) | mm | 450 | |
Engine | Model | 4TNE98-BQFLC | |
Manufacture | YANMAR | ||
Rated output/r.p.m. | Kw | 42.1/2300 | |
Rated torque/r.p.m. | N.m | 186-206/1700 |
