Forklift

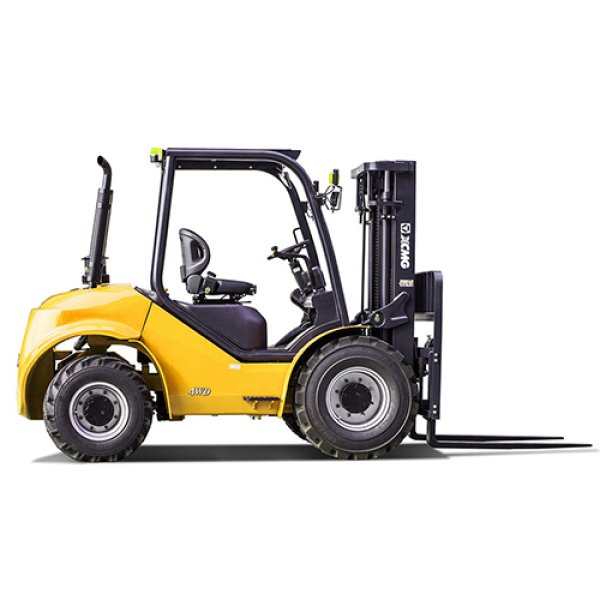

3.5t Rough Terrain Forklift 4wdHot Sale 3.5ton Rough Terrain off Road Forklift Truck 4WD Brand Engine High Performance
| General | 1 | Model | FD35T-C4WE3 | ||
| 2 | Power type | Diesel | |||
| 3 | Rated capacity | Kg | 3500 | ||
| 4 | Load centre | mm | 500 | ||
| Characteristic&Dimension | 5 | Lifting height | mm | 3000 | |
| 6 | Free lift | mm | 165 | ||
| 7 | Fork size | L×W×T | mm | 1220×122×45 | |
| 8 | Fork regulating range | Min./Max. | mm | 250-1315 | |
| 9 | Mast tilt angle | F/R | Deg | 10/12 | |
| 10 | Front overhang | mm | 601 | ||
| 11 | Rear overhang | mm | 600 | ||
| 12 | Min.ground clearance(drive steering axle） | mm | 219 | ||
| 13 | Overall dimensions | Length to face of fork(without fork) | mm | 3081 | |
| 14 | Overall width | mm | 1600 | ||
| 15 | Mast lowered height | mm | 2330 | ||
| 16 | Mast extended height(with backrest) | mm | 4305 | ||
| 17 | Overhead guard height | mm | 2276 | ||
| 18 | Turning radius | mm | 3120 | ||
| Performance | 21 | Speed | travel(Laden/Unladen) | Km/h | 18/19 |
| 22 | Lifting(Laden) | mm | 485 | ||
| 23 | Lowering(Laden) | mm | 450 | ||
| 37 | Engine | Model | 4TNE98-BQFLC | ||
| 38 | Manufacture | YANMAR | |||
| 39 | Rated output/r.p.m. | Kw | 42.1/2300 | ||
| 40 | Rated torque/r.p.m. | N.m | 186-206/1700 | ||
If you have any questions about the product, please fill in the form below and we will contact you as soon as possible.
