SEM518 road compactor

Products
未标题-2_0002_背景_0000_1575617713(1)
未标题-2_0002_背景_0000_1575617713(1)

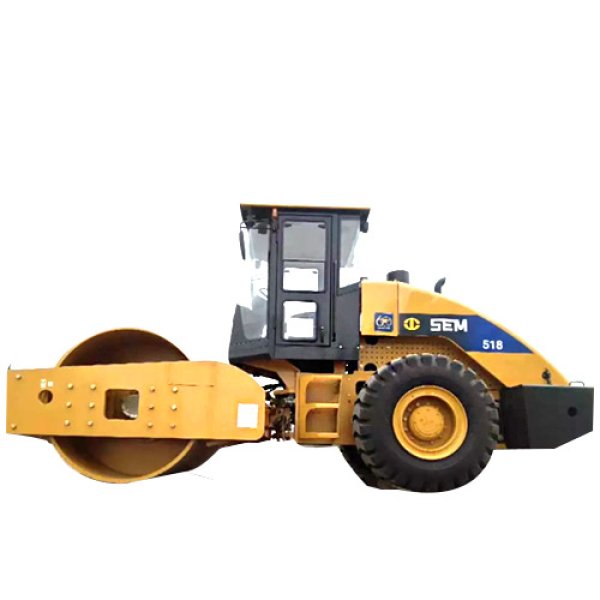

SEM518 road compactor

Model

SEM518

Operating Weight

18000kg

Compaction


Vibration Frequency (High/Low)

30/28Hz

Amplitude (High/Low)

2/1mm

Excitation Force (High/Low)

327/188KN

Static Pressure

415N/cm

Engine


Rated Power

129kw

Speed

2000r/min

Fuel Tank Volume

262L

Hydraulic Oil Tank Volume

80L

Drum


Drum Width

2130mm

Drum Diameter

1600mm

Drum Thickness

40mm

Tires


Tires Type

20.5-25

Speed


F/R 1

2.98km/h

F/R 2

5.88km/h

F/R 3

9.60km/h

Swing Angle

±12°

Steering Angle

±33°

Outer Turning Radius

6350mm

Max. Gradeability

34%
