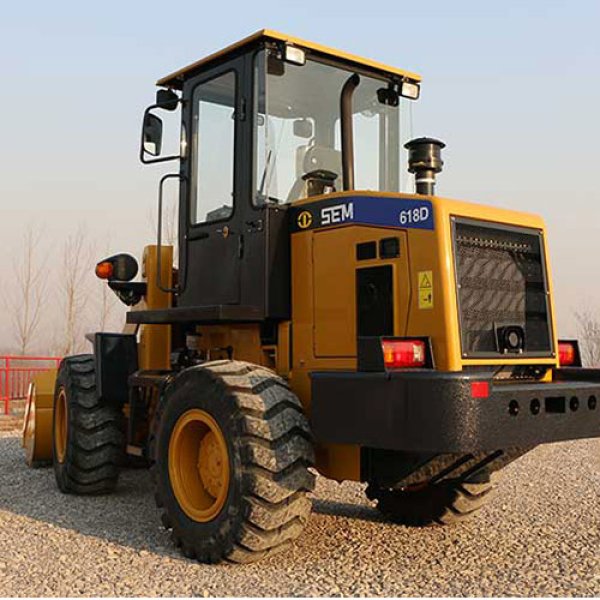

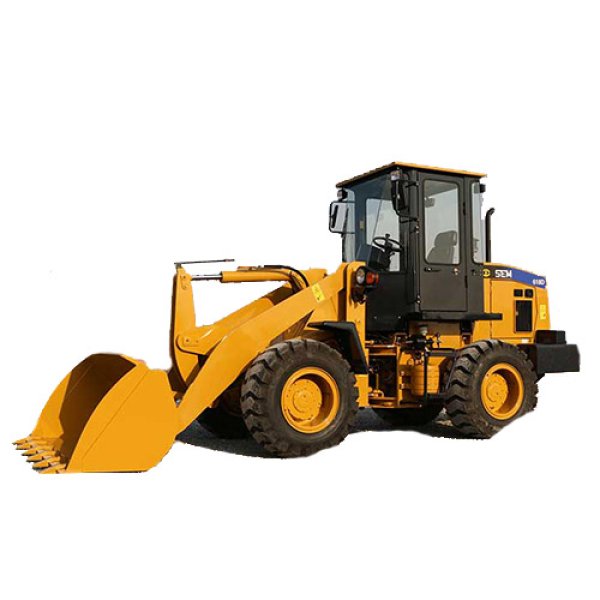

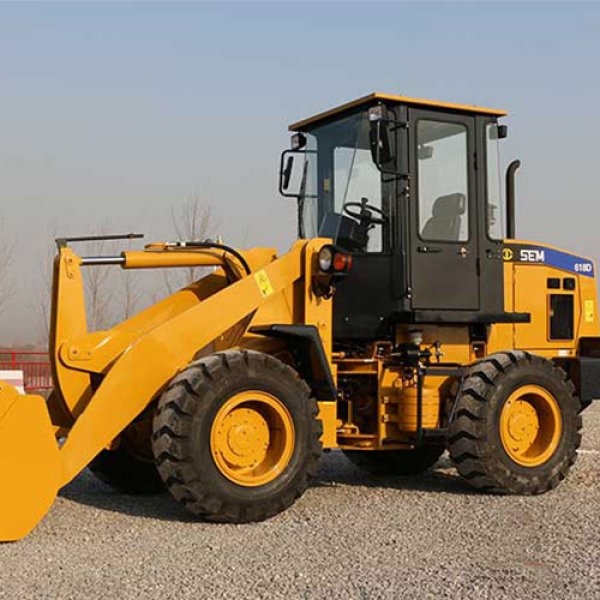

SEM618D.Sem Brand New Small Loader 1.8 Ton Front Wheel Loader Sem618d

Products
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D
SHANTUI SEM618D

SEM618D

Sem Brand New Small Loader 1.8 Ton Front Wheel Loader SEM618D


The new generation of exterior design is stylish and tough

The new generation of family-style appearance is thick, tough and visually impactful

The engine hood is molded with high-quality carbon plate as a whole, which is reliable and durable

The newly developed cab provides a rich configuration, including sun visor, 24V charging power supply, fuel gauge, single-handle pilot operation (optional), etc.

Advanced mechanical suspension seat, more comfortable

The cab is more sealed, and the noise in the cab is reduced by 7% compared with the previous generation

Higher operating efficiency

Further increase in load capacity, standard high-performance 1.7 cubic bucket

Lifting and digging force increased by 10%, more powerful

Wheelbase increased to 2850mm, the whole machine is more stable

Hydraulic cycle time is only 8.1 seconds, the whole machine moves faster

Steering performance is further improved, the fastest steering speed increased by 17%

More reliable products

Fully verified structural parts, after whole machine stress strain test, more reliable and durable

Caterpillar technology vibration reduction system, less vibration, higher reliability

LED front combination lights, better lighting effect, longer life (optional)

Overall pipeline layout optimization, improved reliability

SPECIFICATIONS FOR 1.8 TON SEM Wheel Loader

Item

Unit

Params

Main Specifications

Rated Load

kg

1800

Operating Weight with Standard Bucket

kg

5,940

Bucket Capacity

0.9-1.0

Wheel Base

mm

2,200

Overall Dimension

mm

5,901*2,000*2,822

Max. Drawbar Force

KN

55

Breakout Force

KN

63

Dump Clearance

mm

2691

Transmission

Transmission Type


Countershaft, power shift

Transmission Gears


F2/R2

Torque Converter Type


Single stage, 3 elements

Maker & Type


ZL15

Forward I/Reverse I

Km/h

9.8/9.6

Forward II/Reverse II

Km/h

24/23.6

Axle

Main Drive Type


Spiral bevel gear, single stage

Final Drive Reduction Type


Planetary type, single stage

Rear - Oscillating +/


±12

Engine

Model


YT4B4-22

Rated Power

kW

60

Rated Speed

r/min

2,200

Displacement

L

4.76

Implement Hydraulic

Implement System Type


Open center

Boom Raise Time

s

4.75

Hydraulic Cycle Time

s

7.8

System Pressure Setting

Mpa

17

Brake System

Service Brake


Dry&caliper, air to oil control

Parking Brake


Disk & Caliper

Steering System



System Type


Shared flow

Steering Pump Type


Gear pump

System Pressure Setting

Mpa

14

Steering Angle (L/R)


35±1

Tires

Size


16/70-20

Type


PR

Layer


14

Textured Type


L-3


Engine

a.High efficiency thermal energy control technology, provide higher reliability and efficiency
b.Powerful engine with 30% torque reserve, make this machine suitable for most of applications
c.Special technology control oil consumption, special design on piston and sleeves make this happen. Fuel/oil rate lower than 0.2%
e.Strength engine body design for more durability and lower noise

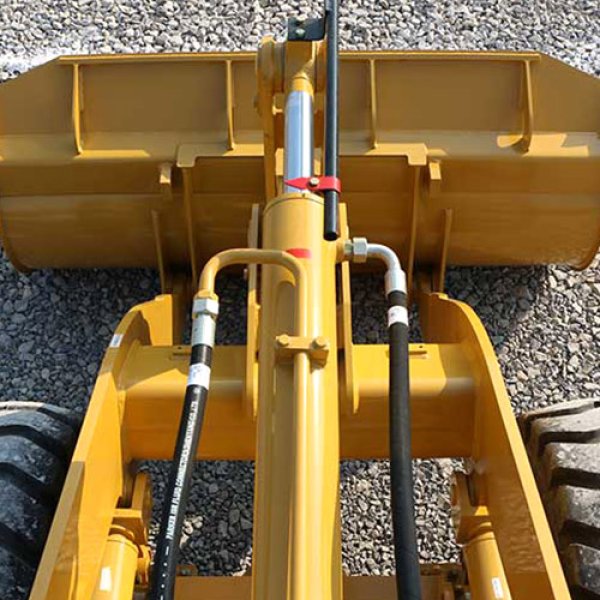

Efficient Hydraulic System

a.Full load-sensing steering hydraulic system bring lower fuel consumption and good operation feeling
b.Professional pump, valve and hose deliver higher reliability
c.Excellent line routing reduce abnormal leakage make hydraulic system more reliable
e.Quick movement with 7.8s cycle time deliver higher productivity

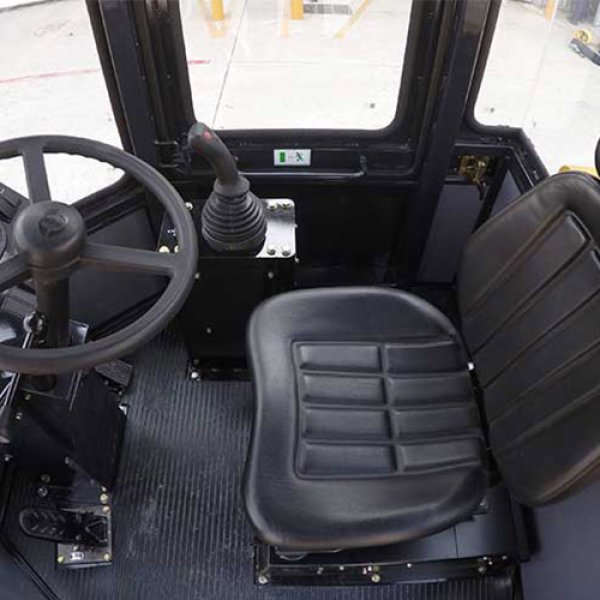

Operator Station

a.First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
b.AC optional for better temperature control inside cab

Drivetrain

a.Professional counter shaft transmission and axle make machine more reliable
b.One stage, 3 elements torque convert higher efficiency

Cooling System

a.High performance aluminum cooling package provides high reliability
b.Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
c.Damping design reduce vibration failure

Solid Structure

a.Validated by technology FEA( Finite Element Analysis) and OMSA(On Machine Stress Analysis)
b.Middle articulation frame less work space requirement, reduce tire resistance and save fuel
c.Large spread hitch design in acticulation section can stand more load

Serviceability

a.Quick pressure test ports on HYD and brake lines make diagnose easier
b.Large wing hood door make service easier, approach to air cleaner, fuel filter and oil filter
c.Large spread hitch design in articulation section make operator easier to approach

Safety

a.High decibel Beacon and backup alarm make person around easy to attention
b.Two boosters design make brake effective

Machine Applications

a.Widely used in Municipal, livestock production and farms
b.Also in industrial, recycled material processing in countryside, cement making and etc.

All loaders are available with optional accessories.
1.Quick-coupled Drag Fork 2.Quick-coupled Bucket
3.Hay Fork 4.Standard Bucket
