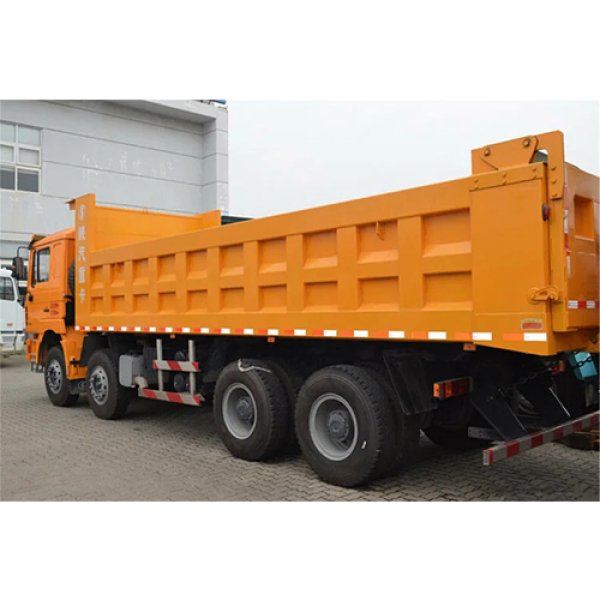

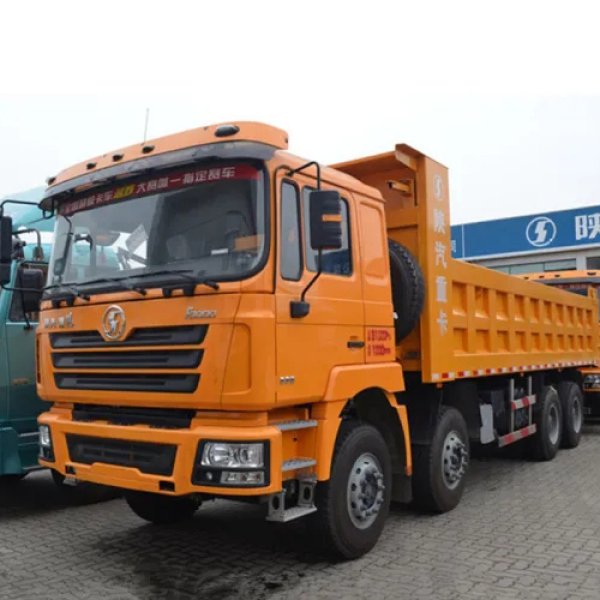

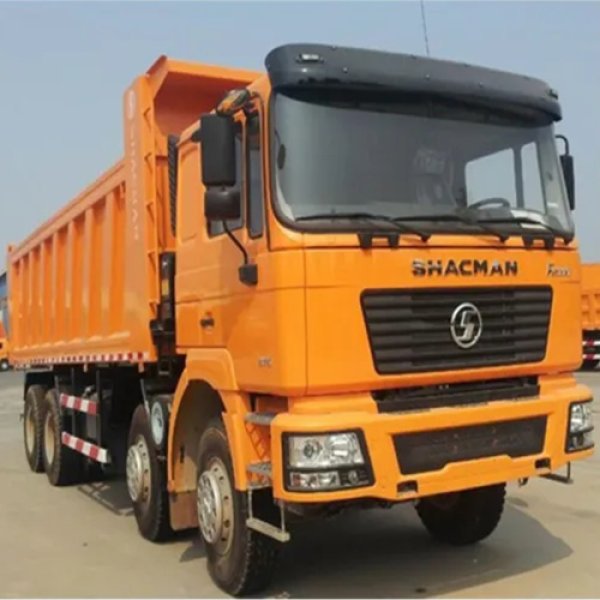

Shacman 25 Cubic Meters 8X4 Dump Tipper Truck

Shacman F3000 Delong 25cbm 8X4 Truck

1.SHACMAN 8x4 dump truck, 300L fuel tank

2.based on MAN technology

3.9.5t front axle,MAN rear axle

4.WEICHAI engine, WP10.380E22,380HP.

5.FAST gearbox, FAST 10JSD180+QH50, 10 speeds and 2 reverse.

It has the advantages of light weight, high efficiency and high cost performance.

Cabin	MAN F3000 cab, double sleeper, hydraulic shock absorb adjustable seat, A/C
	safety belt, adjustable steering, warm air system, sunroof, sun cap, bumper
Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:	WP10.380E22	European technology WEICHAI with MAN EVB technology
	MAX Horse power:	380HP/279KW
Gear box	Applied American technology	Max torque:1800NM
	Model:	FAST 10JSD180+QH50
	Speed:	10 speed, 2 reverse
Axle(front/rear)
Front axle	9.5ton MAN technology non-driving steering axle
Tandem	16ton MAN technology double reduction, hub redactor driving axle,
Clutch	D430 diaphragm type, single dry frictional disc, hydraulic boosting.
Brake	Service brake: Double circuit pneumatic brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF technology, driver sit at the left hand side (RHD is optional)
Tyre	12+1 spare tyre with rim
	12.00R20 radial tyre
Suspension system: strongthen heavy duty Leaf spring type
	Front/Rear		13/13/12
Dump body:
Inside size of Body(mm): 8500x2300x1500, 8x6mm, made of high intensity steel
Lifting type: HYVA front lifter type hydraulic system.
Overall dimension(mm): 11874x2490x3450(Length x width x height)
Wheelbase	1800+4500+1350mm
track:
	Front/Rear		2050/1800
	Approach/Departure angle		18/14
	Front /Rear overhang		1525/2699
	Max speed		77km/h
Kerb weight:	15500kg
Oil tank capacity	300L fuel tank
