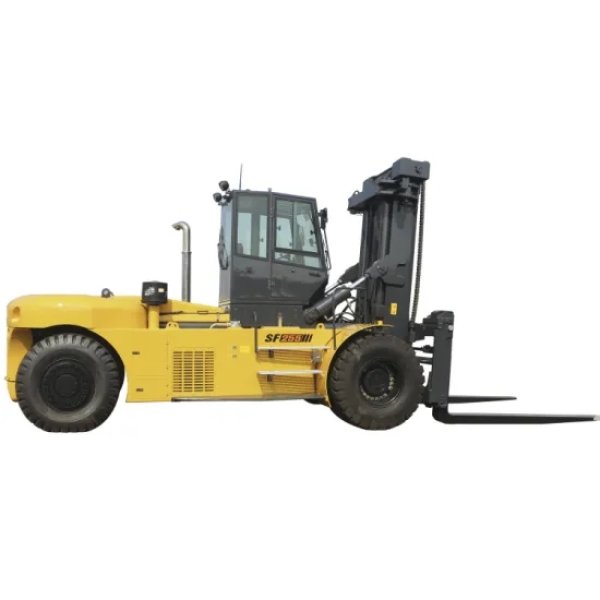

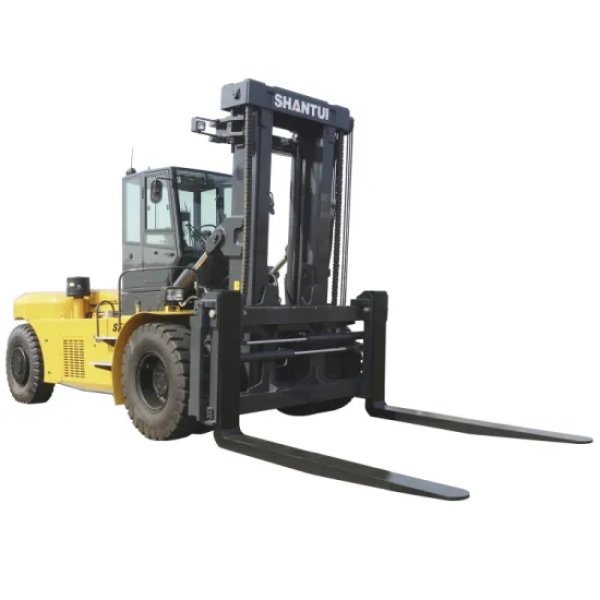

| SF255 | |||
| STANDARD DIMENSIONS | |||
| General | Model | SF255 | unit |
| Load capacity | 25000 | Kg | |
| load center | 1200 | mm | |
| Power type | Diesel | ||
| Dimensions | Lift size | 4000 | mm |
| Fork size | 2400x250x110 | mm | |
| Mast tilt angle | /6/10 | ° | |
| Front overhang | 1110 | mm | |
| Length to face of fork | 8820 | mm | |
| Overall width | 3100 | mm | |
| Overall height fork lowered | 4010 | mm | |
| Overhead guard height | 3800 | mm | |
| Turning radius | 6100 | mm | |
| Performance | travel speed(full load/no load) | 20/22 | Km/h |
| Lift speed with load | 300 | mm/sec | |
| Max.gradeability | 20 | % | |
| Self weight | 36000 | Kg | |
| Wheel&tires | Front | 14.00-24-28PR | |
| Rear | 14.00-24-28PR | ||
| Front | 2200 | mm | |
| Rear | 2335 | mm | |
| Wheelbase | 4250 | mm | |
| Min.ground clearance(mast) | 240 | mm | |
| ENGINE | Model | VOLVO TAD721VE | |
| Rated output | 195/2300 | Kw/rpm | |
| Rated torque | 907/1400 | N·m/rpm | |
| No.of cylinder | 6 | ||
| Bore×stroke | 108×130 | mm | |
| Displacement | 7.15 | L | |
