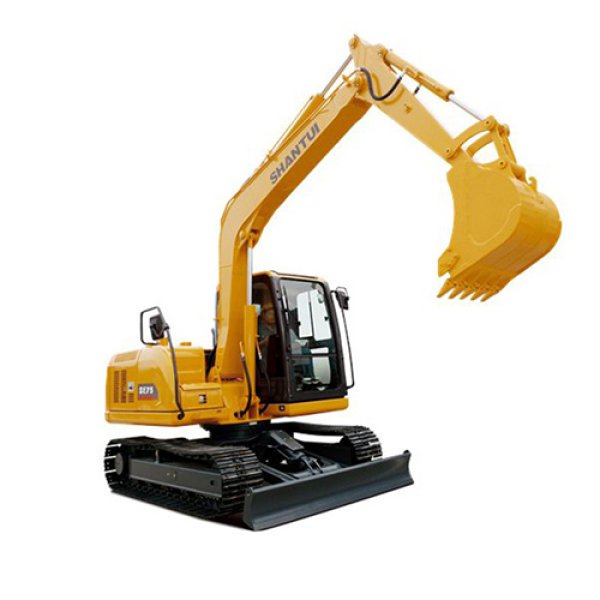

Shantui Hydraulic 75ton Hot Sale Excavator Se75
Operating weight: 7650kg
Rated Power: 48.9KW/2000rpm
Bucket Capacity: 0.32m³
Shantui Hydraulic 75ton Hot Sale Excavator Se75
Operating weight: 7650kg
Rated Power: 48.9KW/2000rpm
Bucket Capacity: 0.32m³
Construction Machinery
Shantui Hydraulic 75ton Hot Sale Excavator Se75Operating weight: 7650kg
Rated Power: 48.9KW/2000rpm
Bucket Capacity: 0.32m³
Technical Features
SHANTUI SE75 Excavator delivers maximum power and performance in a small size to help you work in a wide range of applications
Work comfortably
A brand-new design cab equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
Operating easily
Controls are easy to use and the new generation LED Monitor provides customizable machine operator preferences and easy to read machine information.
Small design, big performance
Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and the front blade allows for easy clean up.
Safety on the job site
Your safety is our top priority. SHANTUI Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a retractable seat belt are just a few of the safety features we’ve built into the machine.
Simple service for less downtime
Maintenance is quick and easy on the SHANTUI Excavator. Routine check points are easy to access at ground level with grouped service points.
Lower operating costs
Equipped with features such as auto idle, economic mode, and efficient hydraulics with a variable displacement pump, the SHANTUI Excavator was designed with reducing your operating costs in mind.
Unparalleled SHANTUI service support
Your SHANTUI dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your SHANTUI dealer is ready to help.
Performance Parameters
SE75 | |
Engine | |
Engine model | Kubota V3307T |
Rated power | 48.9kw/2000rpm |
Max.torque | 263.1N·M/1400rpm |
Displacement | 3.3 L |
Emission standard | Tier 3 |
Operation Range | |
Operating weight | 7650 kg |
Max. digging height | 6945 mm |
Max. dumping height | 4895 mm |
Max. digging depth | 4120 mm |
Max. vertical digging depth | 3620 mm |
Max. digging reach | 6360 mm |
Min. swing radius | 2040 mm |
Dimensions | |
Overall length | 6240 mm |
Overall width | 2260 mm |
Overall height | 2680 mm |
Tail swing radius | 1880 mm |
Min. ground clearance | 385 mm |
Counterweight ground clearance | 825 mm |
Undercarriage/Working Device | |
Std. track shoe width | 450 mm |
Bucket capacity | 0.32 m³ |
Carrier roller(per side) | 1 |
track roller(per side) | 5 |
track gauge | 1800 mm |
Boom length | 3710 mm |
Arm length | 1650 mm |
Performance | |
travel speed | 2.9/4.8 km/h |
Gradeability | 35° |
Ground pressure | 34 kPa |
tractive force | 86.5 kN |
Bucket digging force | 66 kN |
Arm digging force | 44 kN |
Service Refill Capacities | |
Fuel tank | 120 L |
Engine coolant | 11 L |
Engine oil | 11 L |
Hydraulic tank | 140/160 L |
Hydraulic System | |
Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
Pump flow | 160L/min |
Swing System | |
Swing speed | 0-11r/min |
The parameters are for reference only, please contact your sales representative for details. |
