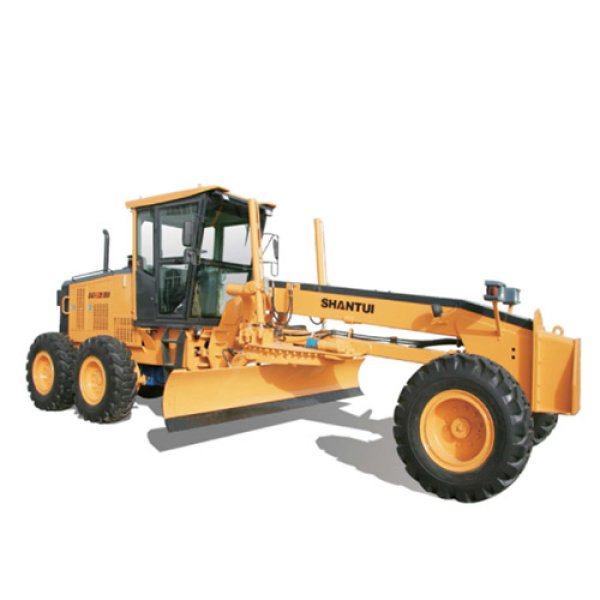

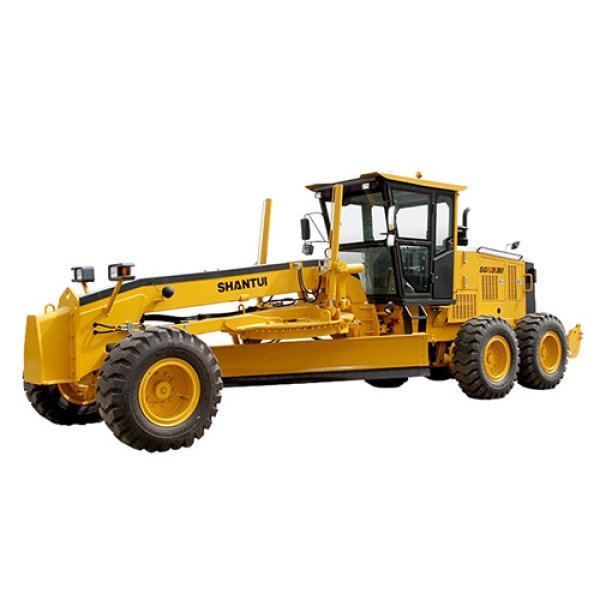

Shantui SG21-3

Engine

Engine model

Cummins 6BTAA5.9-C180

Rated power/speed

132   kW/2200 rpm

Engine type

In-line, water-cooled, 4-cycle, direct injection, turbocharged

Number of cylinders

6(102X120mm)

Piston displacement

5.9L

Maximum torque/speed

770   N·m/1500 rpm

Minimum fuel consumption

 206 g/kW·h

travel speed

Transmission   and torque converter: Electronic controlled transmission with 6 forward gears   and 3 reverse gears.

Gear

1st

2nd

3rd

4th

5th

6th

Forward

0~5.4 km/h

0~9.3 km/h

0~12.2 km/h

0~20.7km/h

0~25.6 km/h

0~39.7 km/h

Reverse

0~5.4 km/h

0~12.2 km/h

0~25.6 km/h

TRAVEL

Tire   Type

17.5-25PR12

Steering system

Max.   steering angle of front wheel

±45°

Max. tilting angle of front wheel

±17°

Max. oscillating angle of front axle

±15°

Steering angle of frame

±25°

Max. oscillating angle of rear axle

±15°

Min. turning radius

7800 mm

Operation weight

Operating   weight (standard configuration)

16200 kg

Front axle load

4800 kg

Rear axle load

11400 kg

Blade

Blade   length

3660/3965   mm

Blade height

635 mm

Blade rotational angle

360°

Cutting angle adjustment range

44~91°

Maximum cutting depth

500 mm

Cutting force per dozing

24.47 kN/m

Maximum lift above ground

440 mm

Maximum blade lateral extension (left/right)

1900/1950   mm
