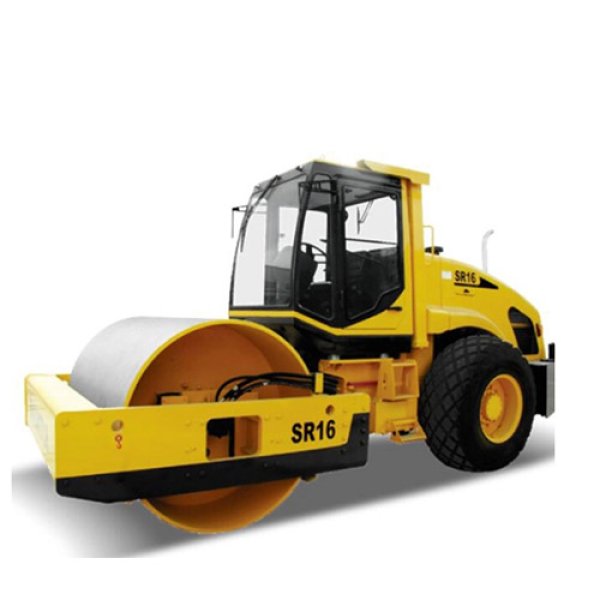

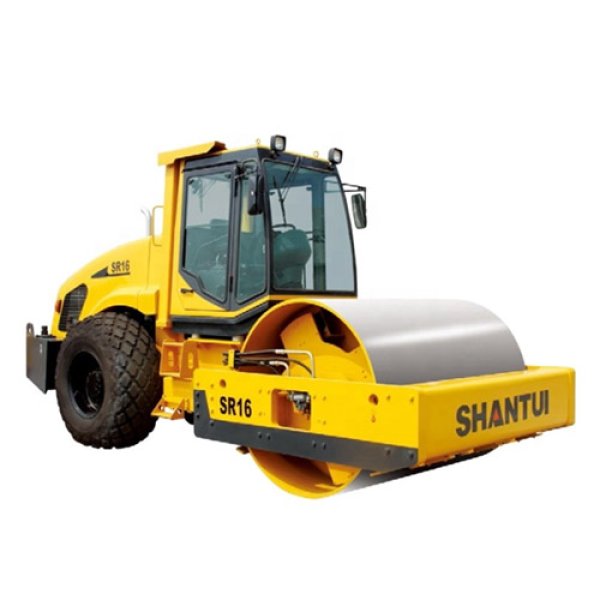

Shantui SR16M road compactor

Weights

Operating weight

16000 kg

Axle load drum

10000 kg

Axle load wheel

6000 kg

Static linear load (at drum)

468 N/cm

Drum and Tires

Maximum working width

2140 mm

Drum diameter

1550 mm

Drum shell thickness

32 mm

Number of padfeet

—

Height of the padfoot

—

Tire size

23.1-26-8PR

Frequency

High amplitude

28 Hz

Low amplitude

32 Hz

Nominal amplitude

High

1.8 mm

Low

0.76 mm

Centrifugal force

Maximum

317 kN

Minimum

167 kN

Forward speed

I

0~5.9 km/h

II

0~9 km/h

III

-

IV

-

Reverse speed

I

0~5.9 km/h

II

0~9 km/h

III

-

IV

-

Maximum climbing ability

45%

Drive system

Hydrostatic

Make & model

Cum mins 6BT5.9

Type

Turbocharged

Fuel

Diesel

Fuel capacity

350 L

Cool

Water

Number of cylinders

6

Rated power

112 kW

Rated speed

2500 rpm

Electrical system

DC, negative ground

24 V

Alternator

28 V, 45 A

Batteries

–

Brakes

Service brake

Hydrostatic

Parking brake

Spring-loaded/mechanical

Steering

Steering system

Oscillating, articulating

Steering method

Hydrostatic
