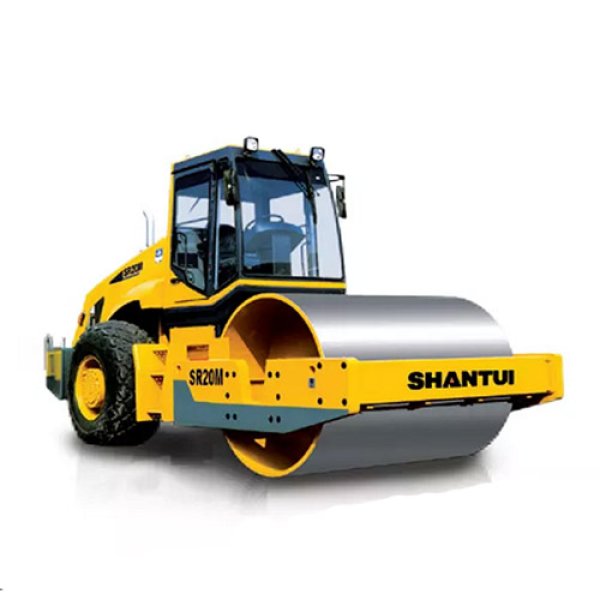

Shantui SR20M road compactor

Operating weight

kg

20000

Load applied on front drum

kg

10000

Load applied on rear wheels

kg

6500

Compacting width

mm

2130

Static linear load

N/cm

529

Vibration frequency(Low/High)

Hz

28/33

Nominal amplitude(High/Low)

mm

1.86/0.93

Exiting force(High/Low)

KN

340/240

Travel speed

km/h

0~10

Steering angle

°

±33

Swing angle

°

±10

Theoretical  gradeability

%

50

Min. external turning radius

mm

6500

Engine model

DEUTZ BF6M2012C

Engine power

kw

136

Rated engine speed

r/min

2200

Engine oil consumption

g/kW.h

222

Hydraulic oil tank capacity

L

240

Fuel tank capacity

L

240
