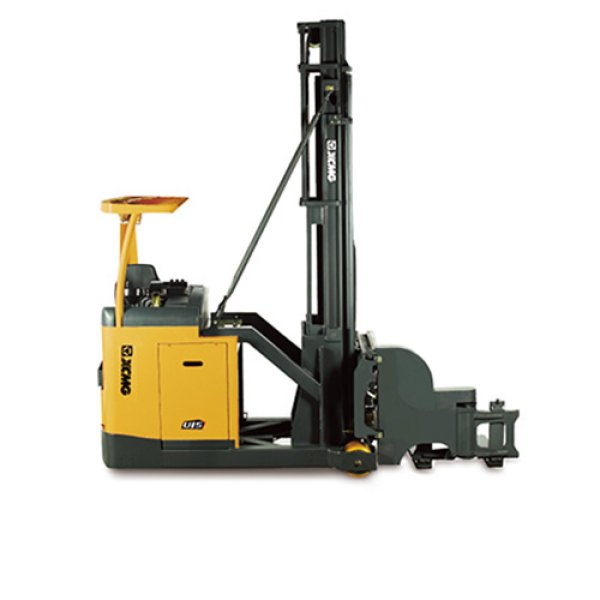

VNA(MAN DOWN) 1.5 ton

Products
VNA(MAN DOWN) 1.5 ton
VNA(MAN DOWN) 1.5 ton

VNA(MAN DOWN) 1.5 ton

• Full AC System

• CAN-BUS Computer Assistant Control System

• Electromagnetic Proportion Hydraulic Control System

• Lifting Height Fixing Device

• Storing Depth Setting Device

• Finger-tip control system

• Side-way Battery Change system

• World Class AC Electric Controller

• Reasonable layout of internal components

• Aisle Automatic Guiding System

• Aisle Terminal Decelerate&Alarm Function

• Graded Speed Adjust Device

• Automatic Return Function

• Electromagnetic Brake System

Manufacturer
XCMG
Model
FBAP15-AZ1
Power
Battery
Operation
 Sit-on
Rated Load Capacity
1500
Load CentreC (mm)600
Rated Lift HeightH3 (mm)4500
Fork Size (L×W×T)mm1070x120x40
Overall LengthL1 (mm)4250/3615
Overall WidthB1 (mm)1600
Mast Lowered HeightH1 (mm)2535
Mast Extended Height (With Backrest)H4(mm)7046
Height to SafeguardH5 (mm)2220
Min. Turning RadiusWa (mm)2270
Ground ClearanceH6 (mm)35
Side shifter distanceX (mm)1340
Fork Side Times8
Fork Rotation AngleDeg180
Fork Rotation Times8
WheelbaseB2 (mm)1950
Min. Turning Aisle Width (1200X1200)Ast (mm)4125
Working Aisle WidthAu (mm)1700
travel Speed (Full Load)km/h9
travel Speed (No Load)km/h9.5
Lifting Speed (Full Load)mm/s220
Lifting Speed (No Load)mm/s250
Total Weight (Include Battery Box)kg5480
Front Tyre×2 (Polyurethane)
250×110×4
Rear Tyre×1 (Polyurethane)
343×135
Drive Motorkw6
Lift Motorkw11
Standard BatteryV/Ah48/840
Steering Systerm
Electronic
Service Brake
 Electromagnetic
Height Control
 Automatic
Controller Type
 AC
Controller Manufacturer
ZAPI
Operating Pressure for AtachmentMpa20
