Basic specification | |

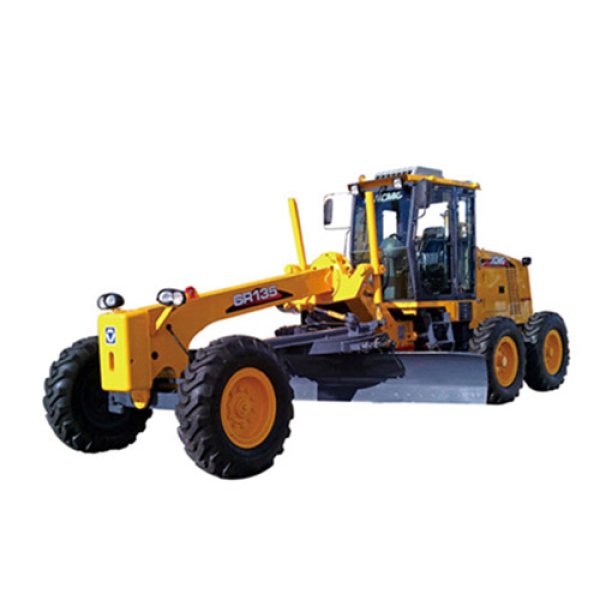

Model | GR135 |
Engine model | 6BT5.9 |
Rated power/speed | 100/2200kw/rpm |
Dimension(LxWxH) | 8015×2380×3050mm |
Operating weight(Standard) | 11200kg |
Performance specification | |
Travelling speed ,forward | 5,8,13,20,30,42km/h |
Travelling speed ,reverse | 5,13,30km/h |
Tractive force(f=0.75) | 61.3KN |
Max. gradeability | 30% |
Tire inflation pressure | 300kPa |
Working hydraulic pressure | 16MPa |
Transmission pressure | 1.3~1.8MPa |
