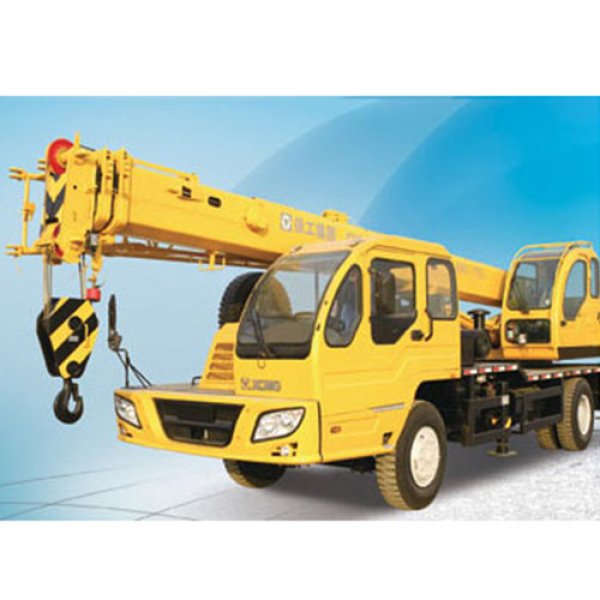

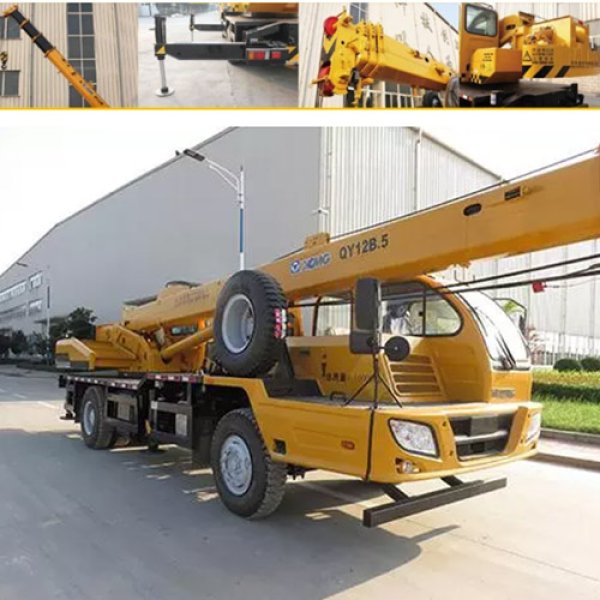

XCMG QY12B.5 rc construction crane 12 ton truck crane

QY12F Ton Mobile Truck Crane 12 Ton Construction Hydraulic Telescopic Truck Crane

Main Specification
Outline Dimensions	Overall length		mm	10785
	Overall width		mm	2500
	Overall height		mm	3050
	Wheel base		mm	4500
	Track		mm	2090/1880
Weight	Total vehicle mass in travel configuration		kg	16000
	Axle load	1st Axle	kg	6000
		2ndAxle	kg	10000
Travel Performance	Max. travel speed		km/h	75
	Min. turning diameter		m	20
	Min. ground clearance		mm	260
	Max. grade ability		%	28
	Approach angle		°	21
	Departure angle		°	11
	Braking distance (at 30 km/h, full load )		m	≤9.5
	Oil consumption per 100km		L	40

1.XJCM truck crane adopts the famous brand of chassis. The driver cab and operator cab are separated.

The advantage is that the crane has good mobility, high reliability and convenient after-sale service, etc.

2.The design of the whole crane is more reasonable than other kinds of cranes, saving raw materials and satisfying performance requirements.

3.New type cab, adjustable suspension seat, air motive shed, electron-hydraulic proportional handle and the push-button control, large color display and new dashboard, electric control H outrigger, electric control engine, electric control hydraulic torque converter gearbox, brake steering drive axle, easily operation, safe and reliable.
