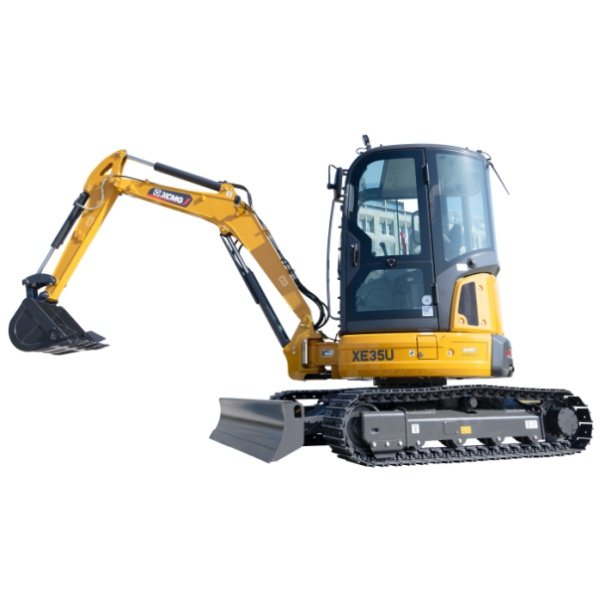

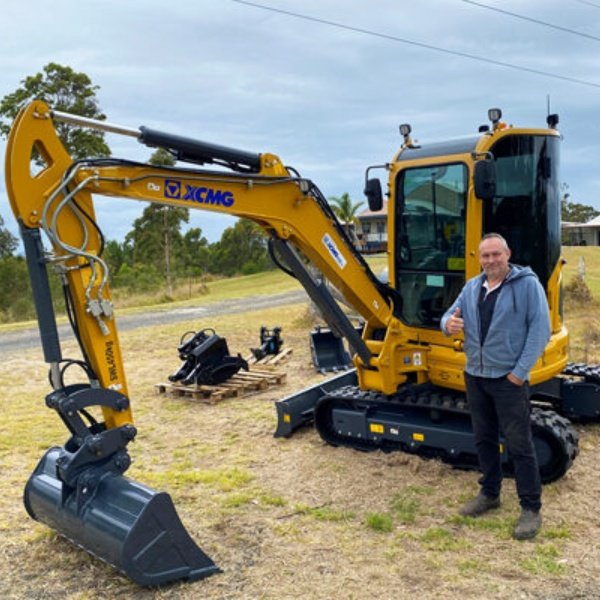

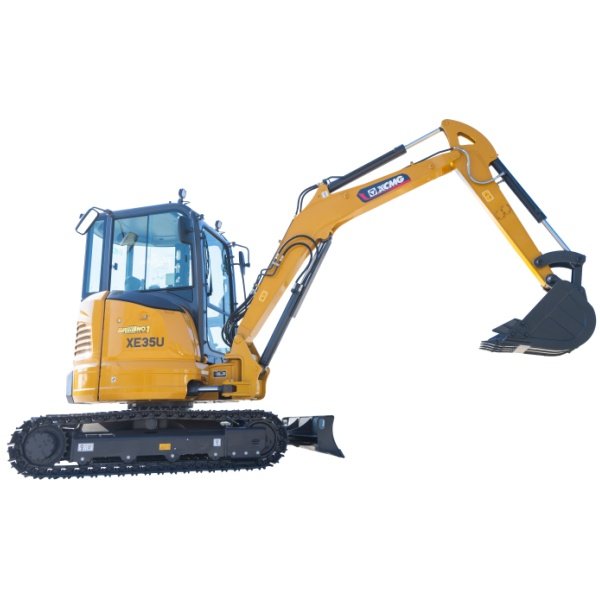

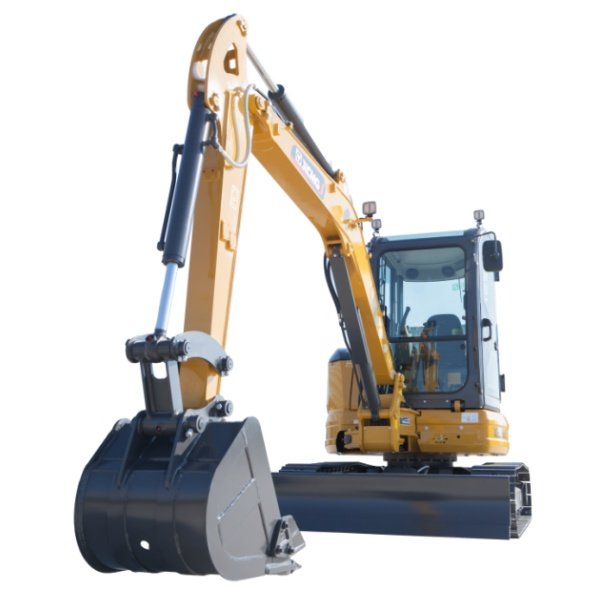

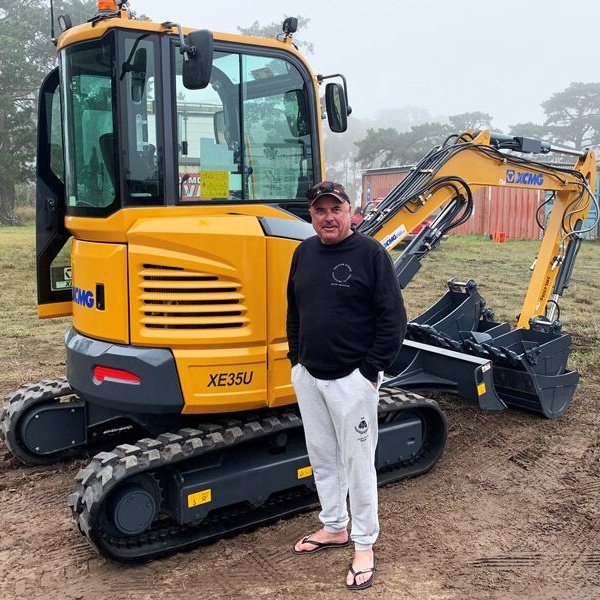

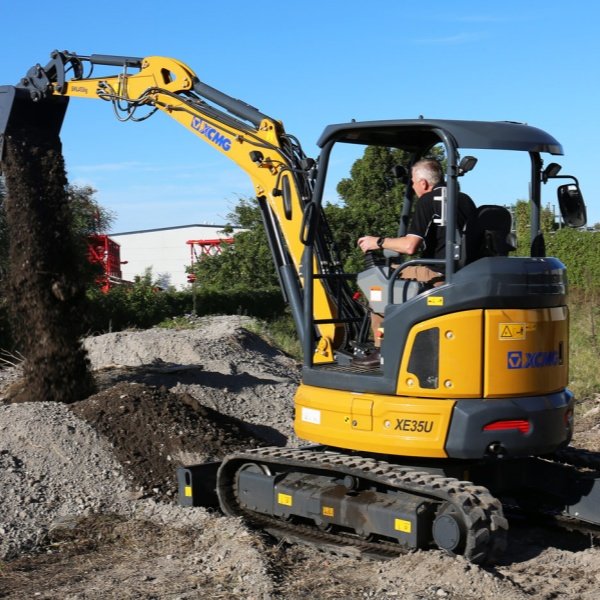

XCMG XE35U Mini Excavator

Hot Model XCMG XE35U Mini Excavator For Sale



XE35U hydraulic excavator is an upgraded product built by XCMG with customers as the center.The whole machine adopts Yanmar engine, with low speed and high torque, strong power and good fuel economy.The cab adopts an integrated steel structure design, which is safe and reliable in structure.Equipped with a detachable driving shed to meet the TOPS/ROPS/OPG safety certification; newly upgraded LED headlights, the light intensity is increased by 3 times, and the construction at night is safer.Standard vehicle,Bluetooth, safe operation.The working device is optimized and the life of the reinforced deflection body is increased by 7 times; the newly designed support wheel increases the engagement with the rubber track by 80%, effectively improving the anti-release performance of the rubber track; the newly debugged hydraulic system makes the walking composite action smoother, and the slope heavy-duty rotation capacity is increased by 40%; the boom cylinder is bold, and the single-action support capacity is greatly improved.


XCMG XE35 U Mini Excavator


The overall shape adopts a tailless design, which is flexible and versatile, and can operate with ease in small spaces such as urban streets and basements. The ultra-small radius of gyration ensures the convenience of construction and improves construction safety.

The working device has a deflection function and can be operated in combination with the rotation of the car, which realizes the excavation parallel to the wall in a small space and meets a variety of extreme working conditions of urban excavation construction.

It has the largest cab space in the same class and is equipped with heating and cooling air conditioning to maximize comfort.

Spare hydraulic pipelines can be configured, and spare pipelines can realize quick hydraulic replacement and installation of broken hammers to further expand the adaptability of working conditions.

In order to meet the needs of different customers in the market, a version of the driving shed has been developed. The configured driving shed can be easily disassembled, and the structure adopts a high-strength design to meet the TOPS/ROPS/OPG safety certification.

As a mature product, it integrates environmental protection, intelligence and multi-function, and will play a vital role in urban construction.

XCMG XE35U Mini Excavator Technical Parameters

Model

XE35U

Operation Weight

4200(kg)

Standard Dipper Capacity

0.11(m3)

Length/Width/Height

4960/1740/2550(mm)

Engine

Model:3TNV88

Rated Power:21.4/2400 kW/rpm

Max.Torque:106.4/1000 N.m/rpm

Output Volume:1.642L

Fuel Tank:40L

Hydraulic System

Main Pump:Two variable displacement piston pumps.one constant flow gear pump and one pilot gear pump.

Rated Flow(main pump flow):102(L/min)

Working pressure:22Mpa

Hydraulic Oil Tank:45L

Performance Parameter

Rotating digging Fore:27.6(kN)

Bucket rod digging force:20.4(kN)

Max.Traction Force:31.6(kN)

Traveling Speed:3.6/2.2(km/h)

Climbing Ability:58%

Grounding Specific Pressure:36.6kPa

Working Range

Max.Digging Radius:5415 mm

Max.Ground Digging Distance:5270 mm

Max.Digging Height:5215 mm

Max.Dump Clearance:3760 mm

Max.Digging Depth:3060 mm

Least Radius Of Gyration:2170 mm

Max.Lifting Height Of Dozer Blade:305 mm

Max.Digging Depth Of Dozer Blade:360 mm
