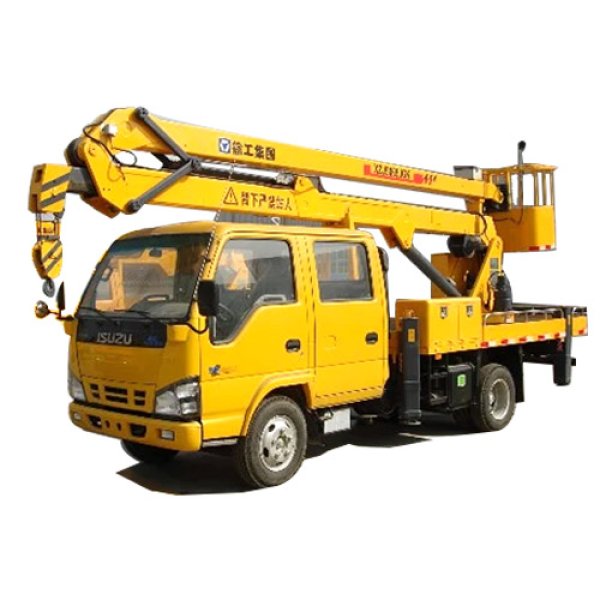

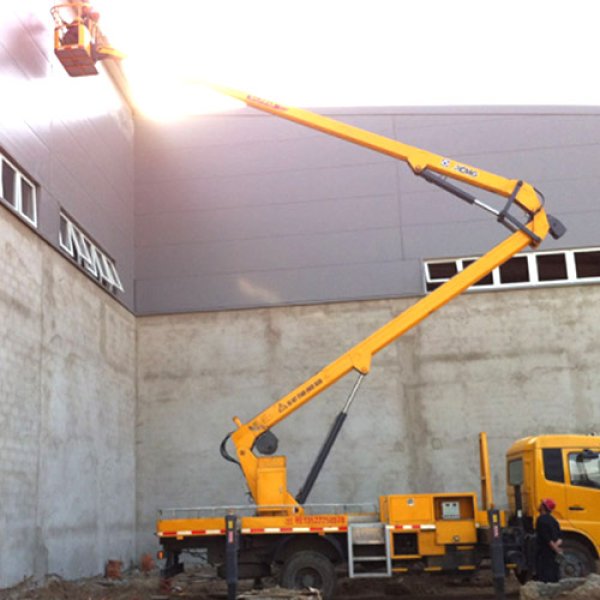

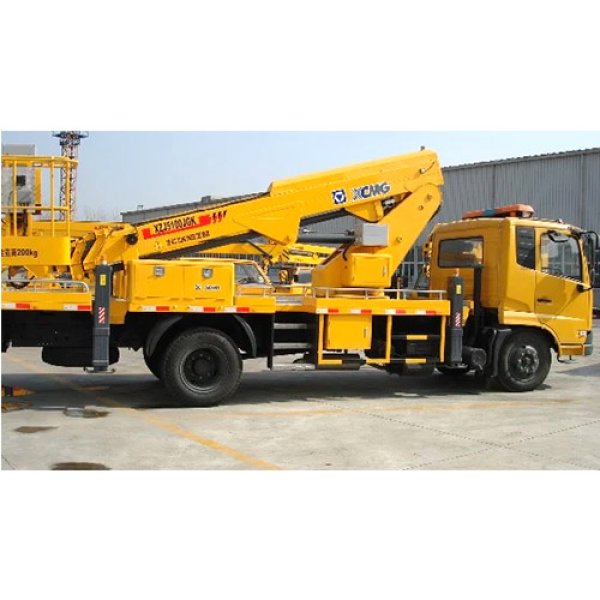

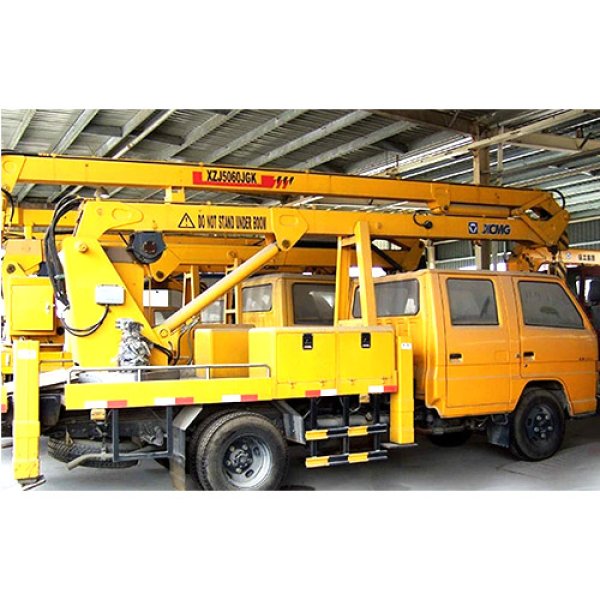

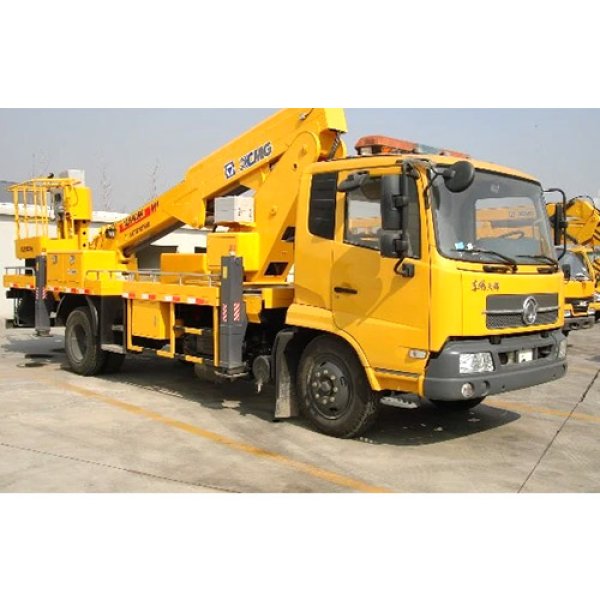

XZJ5090JGK  Telescopic Aerial Working Vehicle

 Vehicle Model

 XZJ5090JGK

 Max Operating Height

 21m

 Max Operating Radius

 11m

 Rated Load of Platform

 200Kg

 Slewing Angle

 ±360°

 Max Operating Radius at Maximum Operating Height

 2.55m

 Max Operating Height at Maximum Operating Radius

 4.7m

 Dimension in Driving( L × W × H)

 8722×2200×3600(mm)

 Chassis Model

 EQ5090GJ12D6

 Engine Model

 CY4102-C3B

 Engine Power

 100kw

200kg truck mounted  portable 21m Telescopic Aerial lifting Working Vehicle XZJ5090JGK


 • Originally imported Germany Hawe solenoid valve (main control valve), proportional valve, and proportional handle.



 • Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance.



 • The turntable and work platform can work together, and both the operation can achieve remote control of the engine.



 • The internally mounted leveling system ensures that the work platform always keeps level.



 • The horizontal and vertical extension and withdrawal of the four outriggers can be independently controlled, featuring good adaptability.



 • There is elevation angle limit device for the upper arm, which can avoid danger.



 • The interlock between the superstructure and undercarriage and the soft outrigger protection function ensure safe operation.



 • When the horizontal outriggers are not extended,  the slewing of the work arm is limited, while it can still be lifted or lowered, which ensures safety and improves efficiency.



 • The emergency pump is available.



 • The electronic timer can add up the work time for timely maintenance.



 • The imported key parts has high reliability, good performance and long service life.



 • The synchronic telescopic arm structure has high work efficiency and wide work range.



 • The multifunction integrated handle is very convenient, smooth and comfortable to operate.



 • The PLC control has superior safety performance like automatic amplitude limit and danger alarm function.



 • The special energy-saving design ensures that the engine is automatically adjusted to ideal speed during engine idling.



 • The interlock between the superstructure and undercarriage can effectively avoid misoperation, which is safe and reliable.



 • The large outrigger span features good stability, and the outriggers can be operated simultaneously or independently, which can be applicable to various kinds of work conditions.



 • The emergency power unit can effectively cope with unexpected failures.



 • The work platform is mounted at the rear part, which is convenient to enter or exit the cab; and it also reduces the gravity of the whole machine and improves travel performance.



 • The work platform can slewing ±90°, which is convenient for the aerial work.



 • Convenient one button extension/withdrawal function.
