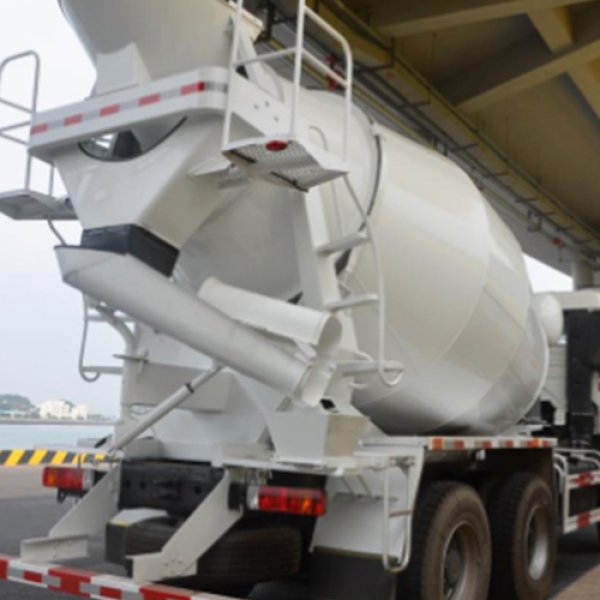

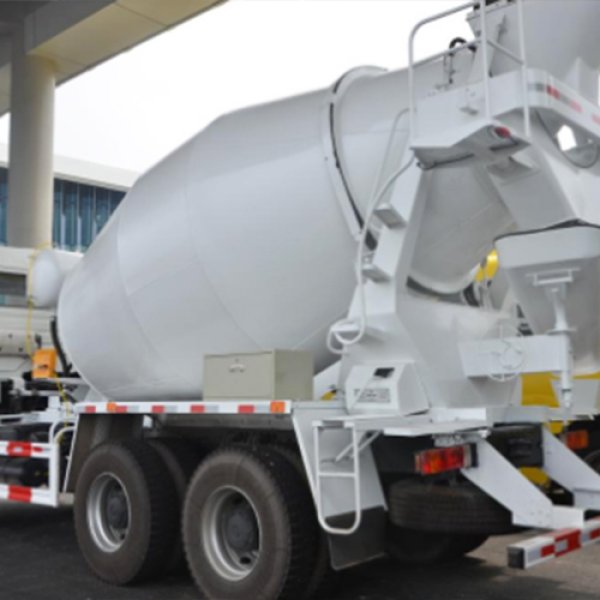

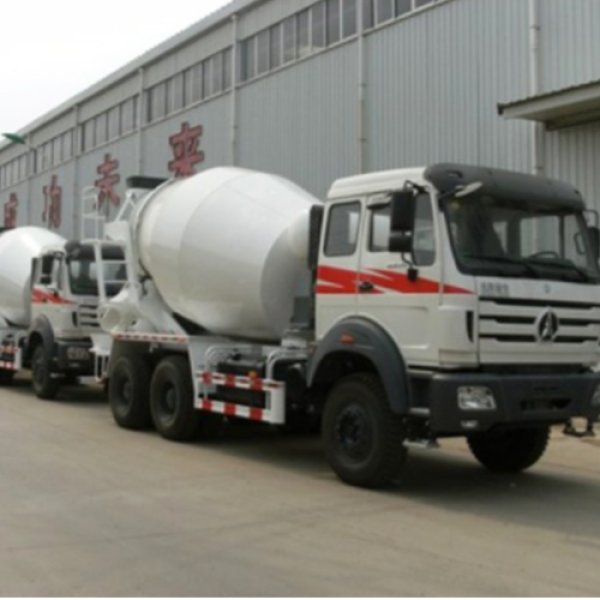

Beiben 6X4 concrete mixer truck

Concrete mixer truck is made to transport and mix concrete up to the construction site.

Equipped with Weichai WP10.340E32/380E32 engine.

The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

It has the advantages of light weight, high cost performance and high performance.

Whole Vehicle Performance & Parameters	Chassis	Beiben left hand driving (right hand drive can be optional)
	Curb Weight (Kg)	15200
	Total Vehicle Weight (Kg)	25000
	Outline Dimension(LBH) (mm)	10380x2496x3998
	Wheelbase (mm)	3800+1350mm
	Max traveling speed(km/h)	90
Vehicle Configuration6	Clutch	Dry Single Disc Clutch (φ430)
	Gear Box	9T1680
	Steering Mechanism	Power steering
	Service Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake
	Tyre	12.00R22.5/315/80R22.5 tubeless tire, 12.00R20 (other tyres can be optional)
	Front/Rear Axle	7.5ton/13ton hub reduction

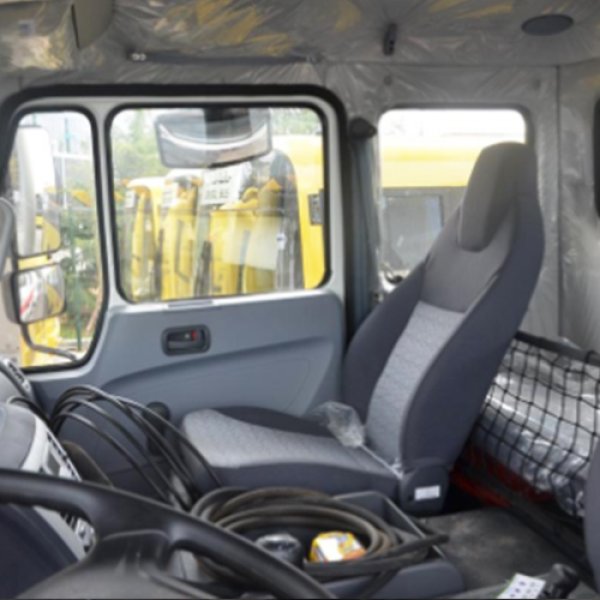

	Cab	One sleeper, with A/C. White
Engine Parameters	Model	Weichai WP10.340E32/380E32 340hp/ 380hp
	Type	Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
	Emission Standard	EuroII
	Max Power (KW)	280(2200r/min)
Mixing Drum Parameters	Max Mixing Cubage (m3)	6/7/8/9/10/12
	Feeding Speed (m3)	≥3
	Thickness of Tank	8mm
	Leftover Rate	<0.3%
	Max Rotating Speed (r/min)	14---16
	Mixing Drum Obliquity (°)	5--8
	Max Mixing Drum Diameter (mm)	φ2412
Driving System	Hydraulic Pump	Italy TOP 089
	Hydraulic Motor	Italy TOP 089
	Speed reducer	Italy TOP P68
	Water supply mode	Water pump; pneumatic pump
Retarder	FHB320B
Remark	Black and yellow flag of the tank body as customer required
