XCMG XE215C Crawler Excavator

Products
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator
XCMG XE215C Crawler Excavator

XCMG XE215C Crawler Excavator

XCMG XE215C Crawler Excavator

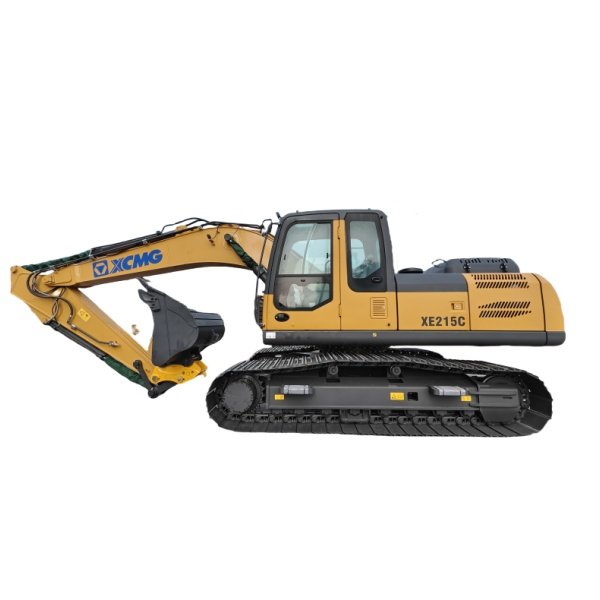

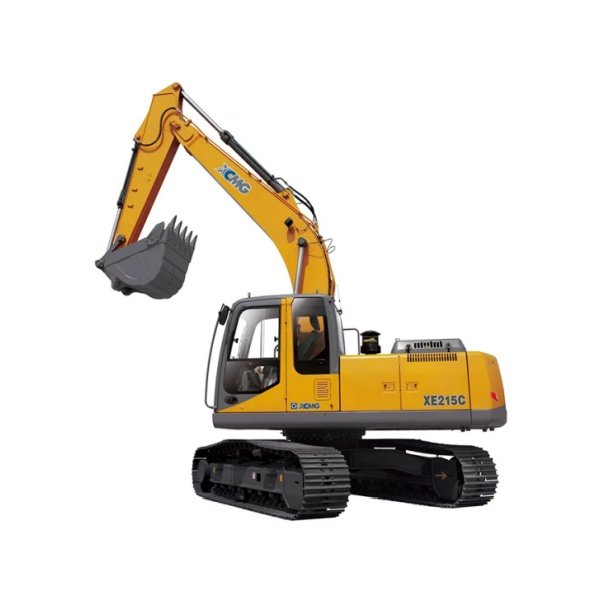

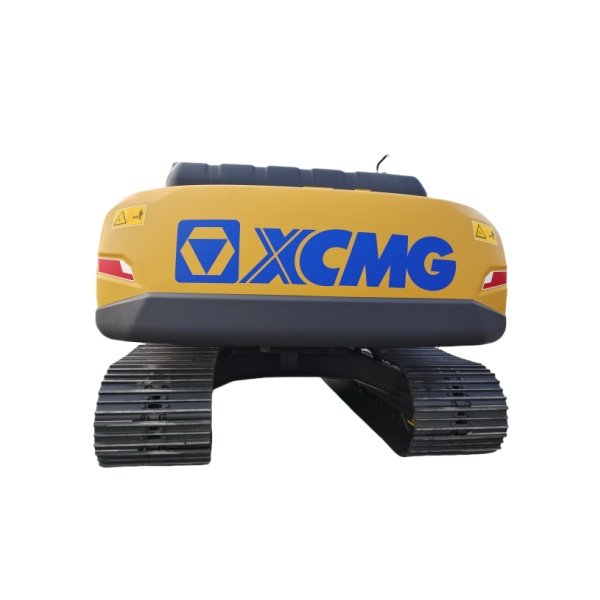

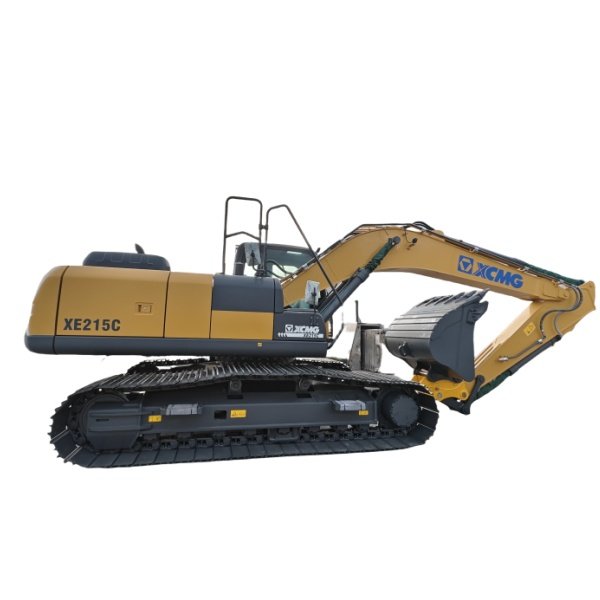

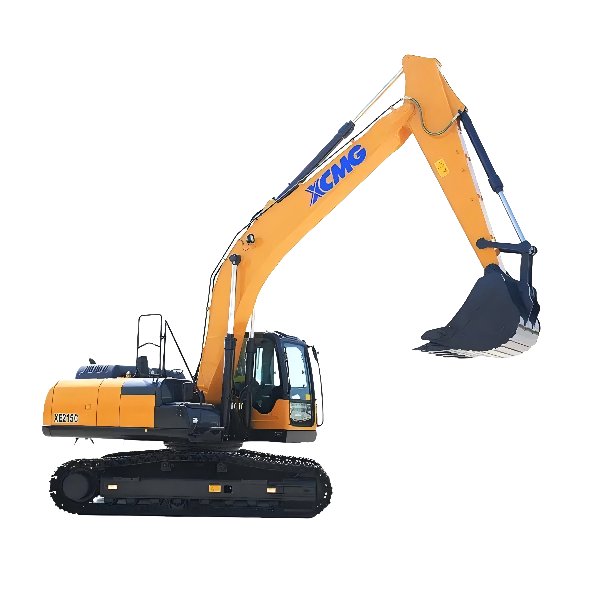

XCMG XE215C excavator is an excavator with strong power and efficient working ability. It is equipped with a high-power engine and a high-quality hydraulic system. It has a strong power output and efficient working ability, and can quickly complete various excavation tasks. XE215C also has a stable and reliable structural design:it adopts a sturdy and reliable frame and a high-strength bucket rod and bucket arm structure design, which improves the stability and durability of the whole machine, and can adapt to various complex working environments.At the same time, the XE215C is flexible and easy to control: it is adopts a user-friendly control system and an optimized design console, which is flexible and easy to operate, which can improve the operator's work comfort and operation accuracy.Energy-efficient and energy-saving: XCMG XE215C excavator has achieved lower fuel consumption and higher energy utilization efficiency through reasonable engine matching and efficient hydraulic system design, reducing energy waste and operating costs.


XE215C Crawler Excavator Technical Specification

Model

XE215C

Operating Weight

21700(kg)

Bucket Capacity

1.0(m3)

Engine

Brand:ISUZU

Model:CC-6BG1TRP

6 cylinders 4 strokes,Water cooling,Turbo-charging,Direct injection,Air to air Inter-cooler

Rated Power/Speed:128.5/2100(kW/rpm)

Max.Torque/Speed:637.9/1800(N.m)

Displacement:6.4694L

Main Performance

Travel Speed(H/L):5.5/3.3(km/h)

Swing Speed:13.2(r/min)

Gradeability:35°

Ground Pressure:49.1kPa

Bucket Digging Force:149(kN)

Arm Digging Force:111(kN)

Maximum Traction Force:184(kN)

Hydraulic System

Main Pump:Two Piston Pump

Main safety valve pressure:34.3/37MPa

Travel system pressure:34.3MPa

Swing system pressure:28MPa

Pilot system pressure:3.9MPa

Oil Capacity

Fuel tank capacity:400L

Hydraulic tank capacity:220L

Engine oil capacity:25L

Appearance size

Overall length:9625

Overall width:2890

Overall height:2985

Width of platform:2830

Track length:4157

Overall width of chassis:2890

Track shoe width:600(mm)

Wheel base of crawler:3366(mm)

Track Gauge:2290(mm)

Gounterweight clearance:1050(mm)

Min.ground clearance:486(mm)

Min.tail swing radius:2844(mm)

Working scope

Max. digging height:9620(mm)

Max. dumping height:6780(mm)

Max. digging depth:6680(mm)

Maximum depth cut for 2240mm(8 ft) level bottom:6320(mm)

Max. Vertical digging depth:5715(mm)

Max. digging radius:9940(mm)

Min. swing radius:3530(mm)

Standard

Length of Boom:5680(mm)

Length of Arm:2910(mm)

Bucket Capacity(m3):1.0
